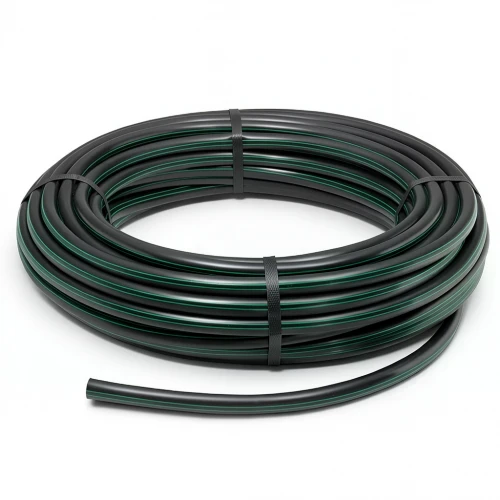

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] Outside Diameter 50 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for demanding water distribution networks, particularly suited to the UAE's harsh climate and rapid infrastructure development. Manufactured to DIN 8074/8075, it delivers exceptional durability and performance in both urban and industrial settings.

The pipe's high-density polyethylene construction ensures outstanding resistance to pressure, UV radiation, and chemical corrosion. With a 50-year maintenance-free lifespan, it significantly reduces lifecycle costs for projects in Dubai, Abu Dhabi, and across the Emirates.

Key Features

• Pressure rating: 10 bar (PN10)
• Outside diameter: 50 mm
• Standard dimension ratio: SDR 13.6
• Pipe series: S 6.3
• Material grade: PE 80
• Wall thickness: 3.7 mm
• Minimum required strength: 8 MPa
• Weight: 0.549 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Length: Available in coils up to 1500 m for sizes 16-32 mm; 100 m coils for sizes 40-160 mm

Applications in the UAE

Ideal for potable water supply, irrigation systems, and industrial fluid transport. The pipe's flexibility and joint integrity make it highly resistant to seismic activity, a key consideration for infrastructure in the region. Its UV resistance ensures long-term performance under intense sun exposure, while chemical resistance (pH 2-12) suits diverse industrial uses.
