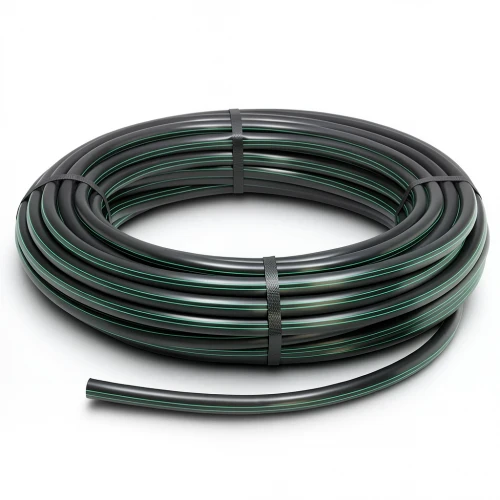

HDPE Plastic Coil Pipe PN 10 Bar [PE 63] OD 160 mm SDR 11 Color Black with Green Stripes | Almona Factory

Our HDPE coil pipes are manufactured by Al Mona Factory in accordance with DIN 8074/8075, delivering exceptional performance for water transportation networks across the UAE. Made from high-density polyethylene (PE 63), these pipes combine strength, flexibility, and longevity, making them a preferred choice for infrastructure projects in Dubai, Abu Dhabi, and beyond.

Key Features

• Pressure rating: PN 10 bar (SDR 11)
• Outside diameter: 160 mm, wall thickness: 14.6 mm
• Material grade: PE 63 with a minimum required strength (MRS) of 6.3 MPa
• Design safety factor: C=1.25 (σs = 5.04 MPa)
• Weight: 6.67 kg/m
• Color: Black with green stripes for easy identification
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in the UAE

These pipes are ideal for potable water supply, irrigation systems, and industrial fluid transfer. Their resistance to high pressure and chemical corrosion (pH 2–12) makes them suitable for the UAE's demanding environmental conditions, including high temperatures and UV exposure. With a 50-year maintenance-free lifespan and earthquake-resistant flexible joints, they ensure reliable, long-term performance in both urban and remote installations.
