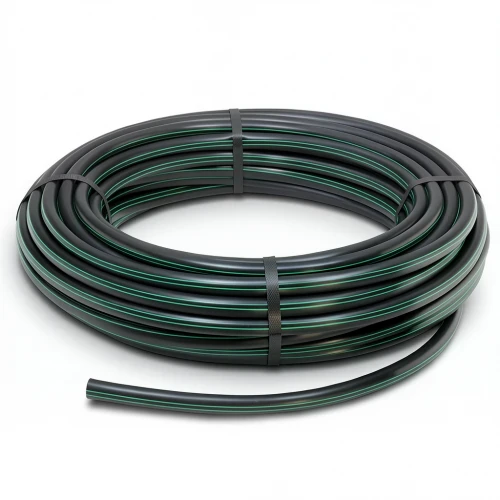

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 160 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Discover the reliability of HDPE Plastic Coil Pipes from Al Mona Factory, engineered for water transportation networks across the United Arab Emirates. Manufactured in compliance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 80) to deliver exceptional performance and longevity.

Key Features

• Pressure rating: 10 bar (PN 10) for high-pressure applications
• Outside diameter: 160 mm with SDR 13.6 and pipe series (S) 6.3
• Wall thickness: 11.8 mm, ensuring robust structural integrity
• Material grade: PE 80 with Minimum Required Strength (MRS) of 8 MPa
• Design safety factor: C = 1.25 for enhanced reliability
• Color: black with green stripes for easy identification
• Weight: 5.50 kg/m, balancing strength and handling ease
• Available in coils of 100 meters, with options from 40 mm to 160 mm diameter

Durability and Performance

These HDPE pipes are built to withstand the demanding conditions of the UAE's climate and infrastructure. They resist UV exposure, chemical corrosion (pH 2-12), and high pressure, ensuring a maintenance-free service life of up to 50 years. Their flexibility provides excellent resistance to earthquakes and ground movement, making them ideal for Dubai, Abu Dhabi, and other emirates.

Applications

Perfect for potable water supply lines, irrigation systems, and industrial fluid transport, these pipes meet the rigorous standards of UAE construction and municipal projects. Their lightweight nature and coil format simplify installation, reducing labor costs and time.
