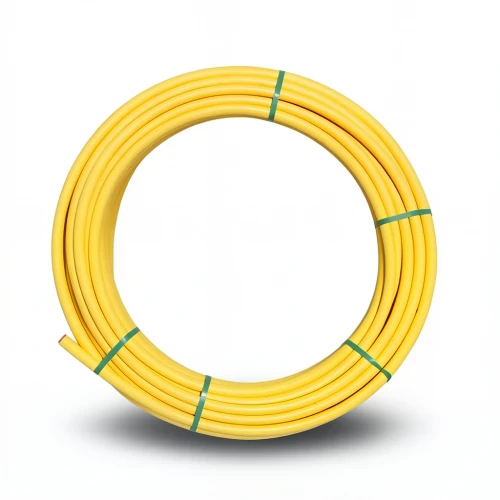

HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 125 mm Thickness 7.1 mm Color Yellow | Almona Factory
(38 Product Views)
Durable HDPE coil pipe in yellow, PE80 grade, 125 mm outer diameter, rated at 4.8 bar, ideal for gas supply networks across the UAE.
in stock
Product description
Product Overview
This HDPE coil pipe, manufactured by Al-Mona Factory, is engineered for reliable performance in gas distribution systems. Made from high-density polyethylene (PE80), it offers exceptional strength, durability, and resistance to corrosion, ensuring a long service life even in the demanding conditions of the UAE's climate.
Key Features
- Material: High-density polyethylene (PE80)
- Outside diameter: 125 mm
- Wall thickness: 7.1 mm
- Nominal pressure: 4.8 bar (SDR 17.6)
- Minimum Required Strength (MRS): 10 MPa
- Design stress: 5 MPa, safety factor C=2
- Weight: 2.68 kg/m
- Color: Yellow (for gas identification)
- Compliant with ISO 4437 standard
- Available in coils of 100 meters (for sizes 40 mm to 160 mm); other coil lengths available for smaller diameters
Applications in the UAE
Ideal for gas supply networks in residential, commercial, and industrial projects across Dubai, Abu Dhabi, and Sharjah. The pipe's corrosion resistance and durability make it suitable for underground installations, withstanding soil conditions and temperature variations common in the region.
