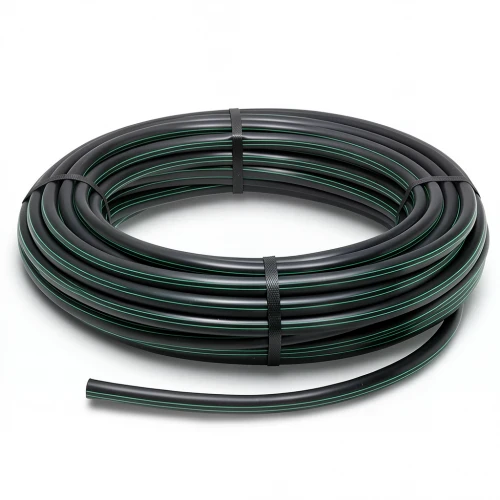

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 110 mm SDR 9 Color Black with Green Stripes | Almona Factory

Our HDPE plastic coil pipes, manufactured by Al Mona factory in accordance with DIN 8074/8075, deliver exceptional performance for water transportation networks across the UAE. Crafted from high-density polyethylene (PE80), these pipes combine durability, flexibility, and long-term reliability, making them a preferred choice for both potable water supply and irrigation projects in Dubai, Abu Dhabi, and the Northern Emirates.

With a nominal pressure of 16 bar and a 110 mm outside diameter (SDR 9), these pipes are engineered to withstand high operating pressures commonly found in municipal water mains and industrial applications. The material's inherent resistance to ultraviolet rays ensures prolonged outdoor exposure without degradation—a critical advantage under the intense sun of the UAE climate. Additionally, the high flexibility of the pipe and its welded joints provides excellent earthquake resistance, while the chemical corrosion resistance (pH 2 to 12) makes it suitable for a wide range of fluids.

Key Features & Benefits

• Material grade: PE80 (MRS 8 MPa) with a design safety factor of C=1.25
• Pressure rating: 16 bar; wall thickness: 15.1 mm
• Weight: 4.49 kg/m; available in coil lengths from 100 to 1500 meters (sizes 16–32 mm) and 100-meter coils (sizes 40–160 mm)
• UV resistant for long-term outdoor installation
• 50-year maintenance-free service life
• Flexible and earthquake-resistant; chemical resistant (pH 2–12)
• Compliant with DIN 8074/8075 standards

Whether for new infrastructure or replacement projects, these HDPE coil pipes offer a cost-effective and reliable solution for the UAE's demanding water distribution requirements.
