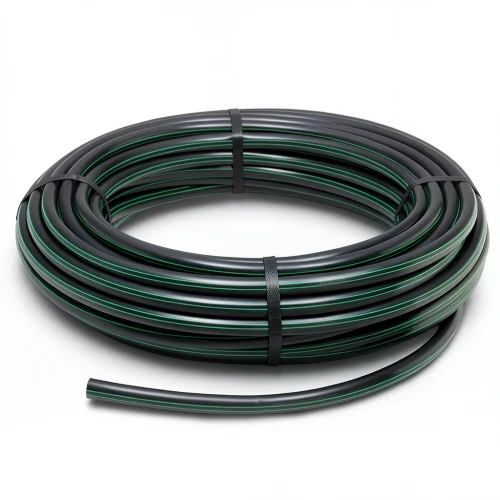

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 80] Outside Diameter 140 mm SDR 41 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is engineered for efficient and durable water transportation across the UAE's demanding environments. Made from high-density polyethylene (PE80), it offers exceptional resistance to high pressure, chemical corrosion (pH 2–12), and UV exposure, ensuring long-term reliability with a maintenance-free lifespan of 50 years.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 41
• Pipe series (S): 20
• Material grade: PE 80
• Nominal pressure: 4 bar
• Wall thickness: 3.5 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 1.54 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Lengths: Coils from 100 m to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in the UAE

Ideal for irrigation networks, water supply lines, and industrial fluid transport in Dubai, Abu Dhabi, and Sharjah, this pipe withstands the region's high temperatures and UV radiation, while its flexibility provides seismic resistance—critical for infrastructure resilience.
