HDPE Polyethylene Plastic Coil Pipe Pressure 4 Bar [PE 80] Outside Diameter 160 mm SDR 33 Color Black | Almona Factory

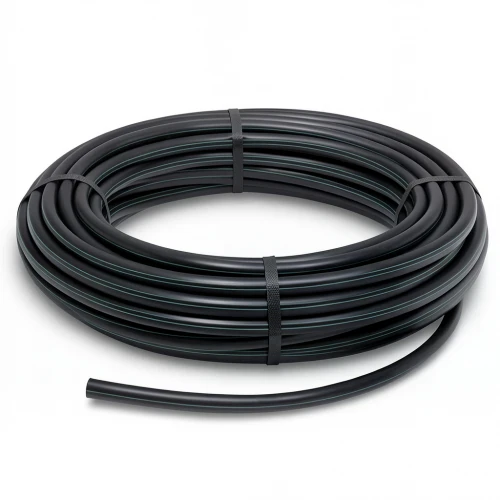

This HDPE coil pipe from Al-Mona Factory is engineered for reliable performance in demanding irrigation and water conveyance applications. Manufactured from high-density polyethylene (PE 80), it offers excellent resistance to corrosion, chemicals, and environmental stress, making it a durable choice for the UAE's harsh climate.

With an outside diameter of 160 mm, a wall thickness of 4.9 mm, and a standard dimension ratio (SDR) of 33, this pipe delivers a working pressure of 4 bar. Its lightweight design (2.42 kg/m) simplifies handling and installation, reducing labor costs and time on site. The pipe is produced in coils of 100 meters for sizes up to 160 mm, and can be supplied in longer lengths (up to 1500 m) for smaller diameters, minimizing joints and potential leak points.

Key Features

• Material: High-density polyethylene (HDPE), grade PE 80
• Pressure rating: 4 bar (designed for low-pressure systems)
• Outside diameter: 160 mm; wall thickness: 4.9 mm
• SDR 33 (standard dimension ratio) ensures consistent strength
• Chemical resistance: withstands pH range 2–12 per DIN 8074/8075
• Long service life: up to 50 years with minimal maintenance
• Available in coils of 100 m (for 40–160 mm) and up to 1500 m (for 16–32 mm)

Applications in the UAE

Ideal for agricultural irrigation projects in Al Ain, landscaping systems in Dubai and Abu Dhabi, and municipal water distribution networks across the Emirates. Its flexibility and corrosion resistance make it suitable for above-ground and buried installations, even in saline soil conditions common in coastal areas.
