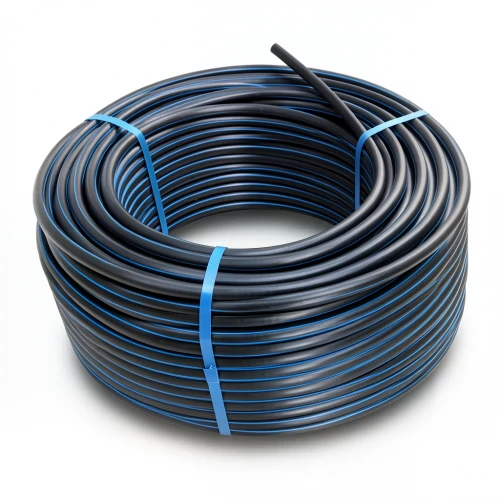

HDPE Plastic Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 160 mm SDR 41 Color Black with Blue Stripes | Almona Factory

Engineered for reliable water distribution in the UAE's demanding climate, these HDPE coil pipes from Al Mona Factory are manufactured to DIN 8074/8075 standards. The high-density polyethylene (PE 100) construction ensures exceptional durability and long-term performance, making them a trusted choice for municipal and industrial water networks across Dubai, Abu Dhabi, and the Northern Emirates.

Key Features

• Outside diameter: 160 mm
• Standard dimension ratio (SDR 41) with a pipe series (S) of 20
• Material grade: PE 100 with a minimum required strength (MRS) of 10 MPa
• Nominal pressure: 3.2 bar; wall thickness: 4 mm
• Design safety factor: C=1.6, resulting in a design stress (σs) of 6.25 MPa
• Weight: 2.02 kg/m
• Black with blue stripes for easy identification
• Available in coils: 100, 200, 300 meters and up to 1,500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Applications in the UAE

These pipes are ideal for water transportation networks, including potable water supply lines, irrigation systems, and industrial fluid transfer. Their resistance to UV radiation and chemical corrosion (pH range 2–12) makes them well-suited for the harsh desert environment and saline soil conditions found in many parts of the UAE. Additionally, the high flexibility of the pipe and welded joints provides excellent earthquake resistance, ensuring reliable service in seismic zones.

With a lifespan of up to 50 years and minimal maintenance requirements, these HDPE pipes offer a cost-effective and sustainable solution for long-term infrastructure projects across the Emirates.
