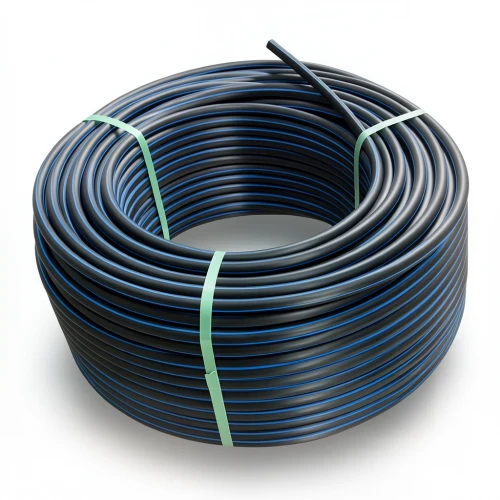

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 100] OD 32 mm SDR 11 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Manufactured to DIN 8074/8075 standards, these pipes are crafted from high-density polyethylene (PE100), offering exceptional durability and performance for a wide range of applications.

Key Features

• High pressure rating of 16 bar, suitable for pressurized water networks
• PE100 material grade ensures long-term strength and reliability
• 50-year maintenance-free service life, reducing operational costs
• Superior resistance to UV radiation, ideal for outdoor installations under the UAE sun
• Flexible and earthquake-resistant, thanks to high pipe and joint flexibility
• Chemical corrosion resistance, compatible with pH levels from 2 to 12

Applications in the UAE

These HDPE pipes are perfect for water supply networks, irrigation systems, and drainage projects across Dubai, Abu Dhabi, and other emirates. Their ability to withstand high pressure and harsh environmental conditions makes them a trusted choice for infrastructure development, landscaping, and agricultural irrigation in the region.

Specifications

• Outside diameter: 32 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 100
• Nominal pressure: 16 bar
• Wall thickness: 3 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.282 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm), and 100-meter coils for sizes 40 mm to 160 mm
