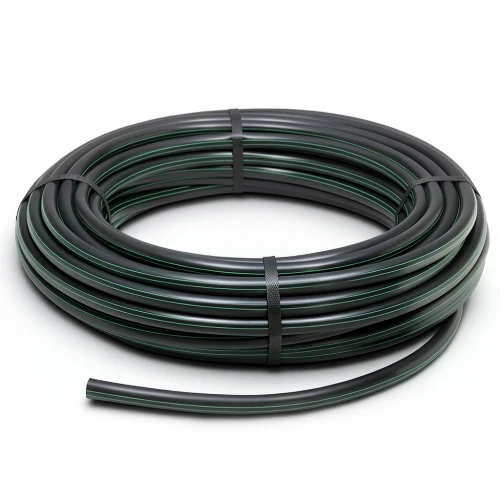

HDPE Polyethylene Coil Pipe Nominal Pressure 4 Bar [PE 63] OD 110 mm SDR 26 Color Black | Almona Company
(5 Product Views)
Product description
This HDPE coil pipe from Al Mona Company is a reliable solution for irrigation and water distribution systems, engineered to meet the demands of the UAE's challenging climate. Made from high-density polyethylene (PE 63), it offers exceptional resistance to pressure, corrosion, and environmental stress, ensuring a long service life with minimal maintenance.
Key Features
- Outside diameter: 110 mm
- Wall thickness: 4.2 mm
- Material weight: 1.43 kg/m
- Standard dimensional ratio (SDR): 26
- Nominal pressure: 4 bar
- Pipe series (S): 12.5
- Material grade: PE 63
- Color: Black
- Minimum required strength (MRS): 6.3 MPa
- Design stress (ฯs): 5.04 MPa
- Design safety factor: C=1.25
- Manufactured according to DIN 8074/8075
Applications in the UAE
Ideal for agricultural irrigation projects in Al Ain and the Northern Emirates, as well as for municipal water supply lines in Dubai and Abu Dhabi. The pipe's flexibility and coil format simplify installation in sandy terrains and reduce the need for fittings, making it a cost-effective choice for large-scale developments.
With a lifespan of over 50 years and zero maintenance requirements, this HDPE pipe is a dependable investment for infrastructure that must withstand high water pressures and extreme temperatures.
