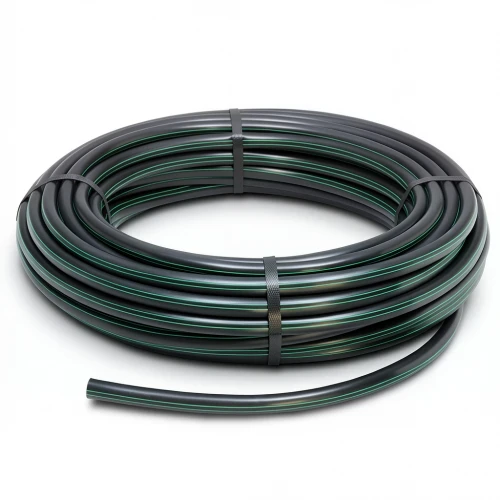

HDPE Plastic Coil Pipe Nominal Pressure 15.9 Bar [PE 63] OD 125 mm SDR 7.4 Color Black with Green Stripes | Almona Factory

Discover the reliability of our HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075 standards. This high-density polyethylene (PE 63) pipe is the ideal solution for water distribution networks across the UAE, from Dubai's urban infrastructure to Abu Dhabi's industrial projects.

Engineered to withstand high water pressure and external stresses, this pipe offers a maintenance-free service life of 50 years. Its flexibility provides exceptional resistance to earthquakes, a crucial feature for regions with seismic activity. Additionally, the pipe resists UV exposure and chemical corrosion, handling a wide pH range from 2 to 12, ensuring long-term performance in harsh environments.

Key Specifications

• Outside Diameter: 125 mm
• Standard Dimension Ratio (SDR): 7.4
• Pipe Series (S): 3.2
• Material Grade: PE 63
• Pressure Rating: 15.9 bar
• Wall Thickness: 17.1 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 5.77 kg/m
• Design Safety Factor: C=1.25 (σs = 5.04 MPa)
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m up to 1500m (for sizes 16mm to 32mm); 100m coils for sizes 40mm to 160mm

Ideal for potable water lines, irrigation systems, and industrial fluid transport, this HDPE pipe combines strength, flexibility, and longevity, making it a trusted choice for contractors and engineers throughout the Emirates.
