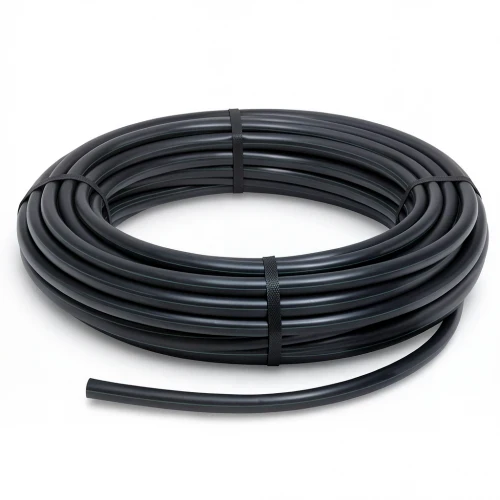

HDPE Coil Pipe Nominal Pressure 4 Bar [PE 63] Outside Diameter 160 mm SDR 26 Color Black | Almona Company
(34 Product Views)
Product description
Al-Mona Company presents its premium HDPE coil pipes, engineered for efficient and durable liquid conveyance in demanding environments. Manufactured from high-density polyethylene (PE 63), these pipes offer exceptional resistance to corrosion, rust, and external factors, ensuring a long service life with minimal maintenance.
With a nominal pressure of 4 bar and a standard dimension ratio of SDR 26, these pipes are well-suited for irrigation networks and water supply systems across the UAE, from Dubai's urban landscaping projects to agricultural ventures in Abu Dhabi and Sharjah. Their flexibility and lightweight nature simplify installation, reducing labor and equipment costs.
Key Specifications
- Outside Diameter: 160 mm
- Wall Thickness: 6.2 mm
- Weight: 3.04 kg/m
- Standard Dimension Ratio: SDR 26
- Nominal Pressure: 4 bar
- Pipe Series (S): 12.5
- Material Grade: PE 63
- Color: Black
- Minimum Required Strength (MRS): 6.3 MPa
- Design Stress (σs): 5.04 MPa
- Design Safety Factor: C=1.25
- Manufactured according to DIN 8074/8075
Available Lengths
Available in coils of 100, 200, 300 meters, and up to 1500 meters for sizes 16 mm to 32 mm. For sizes 40 mm to 160 mm, supplied in 100-meter coils.
Ideal for irrigation systems, these pipes withstand high water pressures and offer a maintenance-free lifespan of up to 50 years, making them a reliable choice for long-term projects in the UAE's challenging climate.
