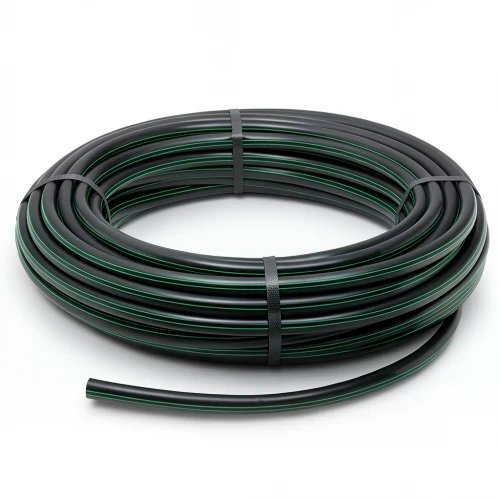

HDPE Plastic Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 20 mm SDR 6 Color Black with Green Stripes | Almona Factory

Almona Factory presents a premium HDPE (high-density polyethylene) coil pipe engineered for reliable water transportation networks. Manufactured to DIN 8074/8075 standards, this pipe offers exceptional durability and performance for demanding applications across the UAE, from residential developments in Dubai to infrastructure projects in Abu Dhabi and Sharjah.

Key Features

• High pressure rating: 15.7 bar, suitable for high-pressure water systems
• Material grade PE 63 with a minimum required strength (MRS) of 6.3 MPa
• Standard dimension ratio SDR 6 with a wall thickness of 3.4 mm
• Outside diameter: 20 mm, weight: 0.180 kg/m
• Design safety factor C=1.6, design stress σs = 3.94 MPa
• Resistant to UV exposure, chemical corrosion (pH 2–12), and seismic activity due to high flexibility
• Maintenance-free service life of 50 years
• Available in coils: 100, 200, 300 up to 1500 meters for sizes 16–32 mm; 100-meter coils for sizes 40–160 mm

Applications in the UAE

Ideal for water supply networks in residential, commercial, and industrial projects, this HDPE pipe withstands the region's harsh climate, including intense sun and temperature fluctuations. Its flexibility and joint integrity make it a preferred choice for underground installations and areas prone to ground movement, ensuring long-term reliability across the Emirates.
