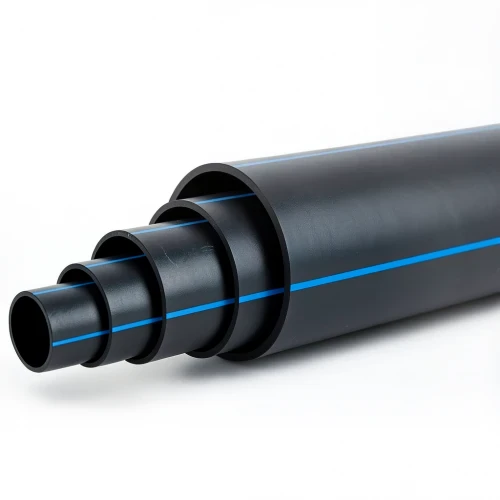

HDPE Polyethylene Pipe PN 16 Bar [PE 100] OD 355 mm SDR 11 Color Black with Blue Stripes | Almona Factory

This HDPE (high-density polyethylene) pipe, manufactured by Al Mona factory to DIN 8074/8075, is an excellent solution for water distribution networks across the UAE. Its PE 100 material grade and SDR 11 rating ensure high pressure resistance and long-term reliability, making it ideal for municipal and industrial applications in Dubai, Abu Dhabi, and Sharjah.

Key Features

• Outside diameter: 355 mm
• Standard dimension ratio (SDR): 11
• Pipe series (S): 5
• Material grade: PE 100
• Pressure rating: 16 bar
• Wall thickness: 32.2 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 32.9 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Standard length: 12 meters (other lengths available on request)

Advantages

With a service life of over 50 years and minimal maintenance, this pipe offers exceptional durability. It withstands high water pressures, making it suitable for pressurized networks. Its flexibility and welded joints provide excellent resistance to seismic activity, a key consideration in the region. Additionally, it resists UV exposure and chemical corrosion, handling a wide pH range of 2 to 12, ensuring performance in harsh UAE conditions.

Applications

Ideal for potable water supply, irrigation systems, and industrial fluid transport, this pipe meets the demands of the UAE's growing infrastructure and construction sector.
