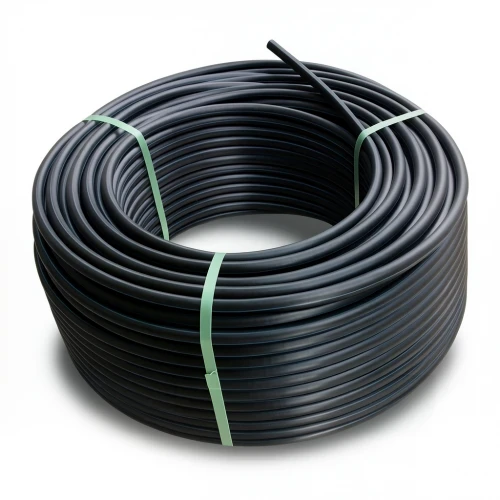

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] Outside Diameter 25 mm SDR 9 Color Black | Almona Factory

Elevate your water distribution projects in the UAE with the HDPE Plastic Coil Pipe from Al Mona Factory. Manufactured to meet DIN 8074/8075 standards, this PE 100 pipe delivers exceptional durability and performance, making it a top choice for potable water networks, irrigation systems, and industrial applications across Dubai, Abu Dhabi, and the Northern Emirates.

Engineered to withstand high pressures up to 15.6 bar, this pipe ensures reliable operation even in demanding conditions. Its high-density polyethylene construction offers a maintenance-free service life of 50 years, significantly reducing long-term operational costs. The pipe's flexibility and resistance to earthquakes and ground movement make it ideal for the UAE's dynamic infrastructure landscape.

With superior resistance to UV radiation and chemical corrosion (pH 2-12), this pipe is built to endure the harsh desert climate and diverse industrial environments. The smooth inner surface minimizes friction, ensuring efficient flow and reduced energy consumption.

Key Features

• Outside diameter: 25 mm
• Standard dimension ratio: SDR 9
• Material grade: PE 100 (MRS 10 MPa)
• Nominal pressure: 15.6 bar
• Wall thickness: 3 mm
• Weight: 0.202 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black
• Available in coils: 100m, 200m, 300m up to 1500m (16-32 mm); 100m coils (40-160 mm)

Whether for new installations or upgrades, this HDPE coil pipe offers unmatched reliability and ease of installation, ensuring your projects in the UAE proceed smoothly and efficiently.
