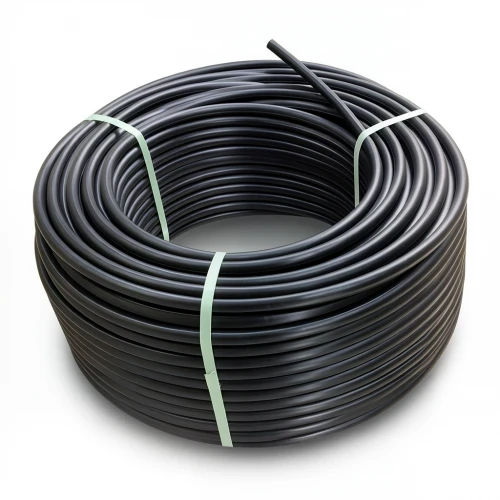

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 63 mm SDR 11 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is a premium solution for water transportation networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, it combines high strength with exceptional flexibility, making it ideal for the region's demanding climate and infrastructure projects.

Made from high-density polyethylene (PE 100), this pipe withstands high water pressures and harsh environmental conditions, including intense UV exposure common in the UAE. Its flexibility provides excellent resistance to shocks and seismic activity, ensuring reliable performance in both urban and industrial settings.

Key Features

• Nominal pressure: 12.5 bar
• Outer diameter: 63 mm
• Standard dimension ratio: SDR 11 (pipe series S 5)
• Material grade: PE 100 (MRS 10 MPa)
• Wall thickness: 5.8 mm
• Weight: 1.06 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black
• Chemical resistance: pH range 2–12
• Maintenance-free service life: up to 50 years
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Ideal for potable water supply, irrigation, and industrial piping, this HDPE pipe is a trusted choice for contractors and developers in Dubai, Abu Dhabi, and across the Emirates.
