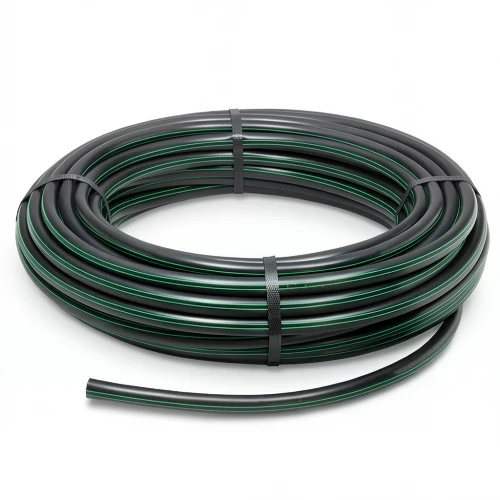

HDPE Plastic Coil Pipe PN 9.8 Bar [PE 63] OD 32 mm SDR 9 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a reliable solution for water transportation networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, this pipe combines flexibility, durability, and long-lasting performance, making it a preferred choice for both residential and commercial projects in Dubai, Abu Dhabi, and beyond.

Key Features

• Outside diameter: 32 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 63
• Pressure rating: 9.8 bar
• Wall thickness: 3.6 mm
• Minimum required strength (MRS): 6.3 MPa
• Material weight: 0.327 kg/m
• Design safety factor: C=1.6, σs=3.94 MPa
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm

Applications in the UAE

These HDPE pipes are ideal for water supply networks, irrigation systems, and industrial fluid transportation. Their high pressure resistance suits the demanding conditions of UAE infrastructure, while their flexibility allows easy installation in challenging terrains, including sandy soils and rocky areas common in the region.

Durability and Maintenance

With a service life of over 50 years without maintenance, these pipes offer excellent value. They withstand UV exposure, making them suitable for outdoor installations under the intense UAE sun. Additionally, they resist chemical corrosion across a pH range of 2 to 12, and their flexibility provides earthquake resistance, ensuring reliability in seismic events.
