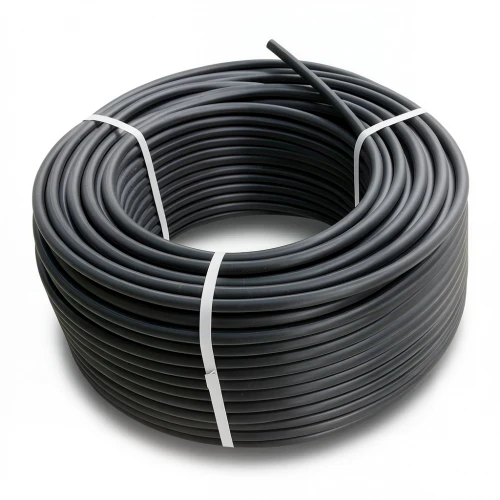

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 110 mm SDR 11 Color Black | Almona Factory
(30 Product Views)
High-density polyethylene coil pipe from Almona Factory, rated PE 100 with 12.5 bar pressure capacity, 110 mm outer diameter, and SDR 11, engineered for reliable water transport in the UAE.
in stock
Product description
Upgrade your water distribution networks with these premium HDPE coil pipes from Almona Factory, crafted to meet the rigorous demands of the UAE's infrastructure projects. Manufactured in accordance with DIN 8074/8075, these pipes are engineered from high-density polyethylene (PE 100) to deliver exceptional durability and performance in both potable water and irrigation systems.
Key Features
- High Pressure Rating: Withstands 12.5 bar pressure, ideal for high-pressure water mains and pumping systems common in Dubai and Abu Dhabi developments.
- Long Service Life: Offers a maintenance-free lifespan of 50 years, reducing lifecycle costs for municipal and industrial projects.
- UV Resistance: Formulated to endure prolonged exposure to the intense UAE sun, ensuring structural integrity in outdoor installations.
- Chemical Resistance: Handles a wide pH range (2 to 12), making it suitable for various industrial and agricultural applications.
- Flexibility and Seismic Resilience: High flexibility in both pipes and welded joints provides excellent resistance to ground movement and earthquakes, a critical factor in the region's geotechnical conditions.
- Lightweight and Easy Installation: Coil format simplifies handling and reduces installation time, especially for long-distance water supply lines.
Technical Specifications
- Outside Diameter: 110 mm
- Standard Dimension Ratio: SDR 11
- Pipe Series (S): 5
- Material Grade: PE 100
- Nominal Pressure: 12.5 bar
- Wall Thickness: 10 mm
- Minimum Required Strength (MRS): 10 MPa
- Weight: 3.18 kg/m
- Design Safety Factor: C=1.6 (σs = 6.25 MPa)
- Color: Black
- Available Lengths: Coils of 100, 200, 300 meters (up to 1500 meters) for sizes 16-32 mm; 100-meter coils for sizes 40-160 mm
These HDPE pipes are the preferred choice for engineers and contractors across the Emirates, delivering reliable performance in water transmission, sewage, and drainage applications. With their robust construction and compliance with international standards, they ensure safe and efficient fluid handling in demanding environments.
