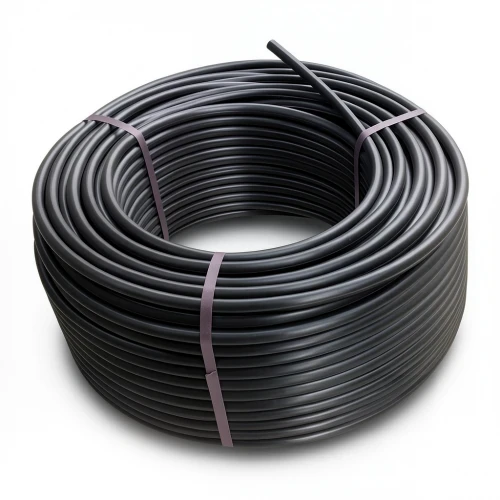

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 32 mm SDR 13.6 Color Black | Almona Factory
(3 Product Views)
High-density polyethylene (HDPE) pipe coils for water supply networks, PN 10 bar, PE 80, OD 32 mm, SDR 13.6, black, from Al-Mona Factory.
in stock
Product description
These HDPE pipe coils from Al-Mona Factory are engineered for reliable water transportation in the UAE's demanding environment. Manufactured to ISO 4427-2, they offer exceptional durability, resistance to high temperatures and pressure, and immunity to corrosion and rust.
With an outside diameter of 32 mm and a standard dimension ratio (SDR) of 13.6, these pipes are ideal for municipal water supply, irrigation, and industrial applications across Dubai, Abu Dhabi, and the wider Emirates.
Key Features
- High-density polyethylene (PE 80) material
- Pressure rating: 10 bar (PN 10)
- Outside diameter: 32 mm
- Wall thickness: 2.4 mm
- Minimum Required Strength (MRS): 8 MPa
- Design stress (ฯs): 6.4 MPa
- Design safety factor: C=1.25
- Color: Black
- Available in coil lengths: 100m, 200m, 300m, up to 1500m (for sizes 16-32mm)
- 100-meter coils also available for sizes 40-160mm
Ideal for potable water lines, sewage systems, and agricultural projects, these coils offer flexibility and ease of installation, reducing joints and labor costs. Trust Al-Mona's quality for your next infrastructure project in the UAE.
