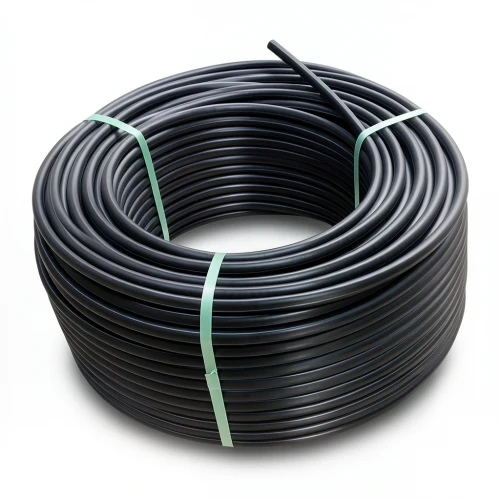

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 80] OD 50 mm SDR 13.6 Color Black | Almona Factory
(6 Product Views)
High-density polyethylene coil pipes from Al-Mona Factory, rated for 10 bar pressure with a 50 mm outer diameter, engineered for durable water distribution across the UAE.
in stock
Product description
These HDPE coil pipes from Al-Mona Factory are the reliable choice for water transportation networks across the United Arab Emirates. Manufactured to ISO 4427-2 standards, they offer exceptional durability, resistance to corrosion, and the ability to withstand high temperatures and pressuresโmaking them ideal for the region's demanding climate and infrastructure needs.
Key Features
- Material: High-Density Polyethylene (PE 80)
- Outside Diameter: 50 mm
- Standard Dimension Ratio (SDR): 13.6
- Nominal Pressure: 10 bar
- Wall Thickness: 3.7 mm
- Minimum Required Strength (MRS): 8 MPa
- Design Stress: 6.4 MPa
- Design Safety Factor: C=1.25
- Color: Black
- Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm
Applications in the UAE
Perfect for potable water supply, irrigation systems, and industrial fluid handling, these pipes are suitable for both above-ground and underground installations. Their long lifespan and resistance to ground pressures make them a cost-effective solution for residential, commercial, and municipal projects in Dubai, Abu Dhabi, and across the Emirates.
