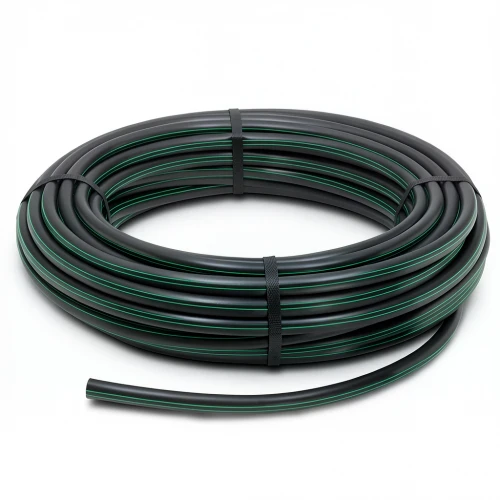

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 40 mm SDR 11 Color Black with Green Stripes | Almona Factory

Our HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Made from high-density polyethylene, these pipes offer exceptional durability and performance, ensuring long-lasting service in both urban and industrial applications.

Key Features

• High pressure resistance: Rated for 10 bar, suitable for high-pressure water networks common in Dubai and Abu Dhabi.
• Long lifespan: Over 50 years of maintenance-free operation, reducing lifecycle costs.
• UV and weather resistant: Withstands prolonged exposure to the intense UAE sun.
• Seismic resilience: Flexible pipes and welded joints absorb ground movement, ideal for earthquake-prone areas.
• Chemical resistance: Handles a wide pH range (2-12), making it versatile for various fluids.

Specifications

• Outside diameter: 40 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Pressure rating: 10 bar
• Wall thickness: 3.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.430 kg/m
• Design safety factor: C=1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 up to 1500 meters (for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm

These pipes are widely used in water supply networks, irrigation systems, and industrial fluid transport across the Emirates, offering a cost-effective and reliable solution for infrastructure projects.
