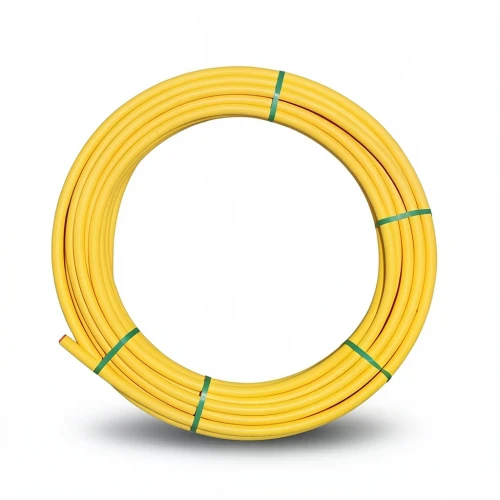

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 32 mm Thickness 2.3 mm Color Yellow | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with ISO 4437, is engineered for reliable gas supply networks across the United Arab Emirates. Its high-density polyethylene construction delivers exceptional strength, durability, and resistance to corrosion, ensuring long-lasting performance in the region's demanding climate.

Designed for ease and speed of installation, this pipe can be assembled without advanced equipment, reducing labor costs and project timelines. Available in yellow for gas applications, it meets the rigorous standards required for both residential and commercial projects in Dubai, Abu Dhabi, and Sharjah.

Key Features

• Material: High-Density Polyethylene (PE 80)
• Nominal Pressure: 4.8 bar (SDR 17.6)
• Outside Diameter: 32 mm
• Wall Thickness: 2.3 mm
• Weight: 0.22 kg/m
• Minimum Required Strength (MRS): 10 MPa
• Design Stress: 5 MPa
• Design Safety Factor: C=2
• Color: Yellow (gas standard)
• Length: Coils from 100m to 1500m (16-32 mm); 100m coils for 40-160 mm

With its robust performance and compliance with international standards, this HDPE pipe is a trusted choice for gas distribution systems throughout the UAE, ensuring safety and efficiency in every project.
