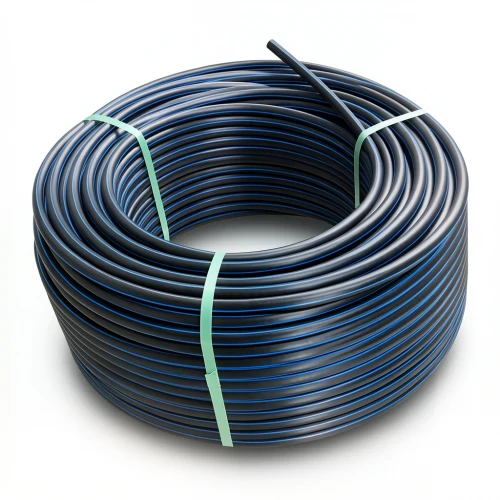

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 40 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Overview

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for reliable water transportation networks across the United Arab Emirates. Made from high-density polyethylene (PE 100), they deliver exceptional durability and performance, making them a preferred choice for both potable water supply and irrigation systems in the region's demanding climate.

Key Features

• High pressure resistance: Withstands 15.6 bar, suitable for high-pressure water mains.
• Long service life: Up to 50 years maintenance-free, reducing operational costs.
• UV resistance: Excellent protection against prolonged sun exposure, ideal for outdoor installations in the UAE.
• Flexible and durable: Resistant to earthquakes and ground movement due to high flexibility of pipes and welded joints.
• Chemical resistance: Tolerates a wide pH range (2 to 12), ensuring compatibility with various water conditions.
• Easy installation: Coil format simplifies handling and reduces the need for underground trenching.

Technical Specifications

• Outside Diameter: 40 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 100
• Pressure Rating: 15.6 bar
• Wall Thickness: 4.5 mm
• Minimum Required Strength (MRS): 10 MPa
• Material Weight: 0.514 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes

Applications in the UAE

Ideal for water supply networks, irrigation projects, and industrial applications in Dubai, Abu Dhabi, and Sharjah, where high temperatures and UV exposure are common. The coil format allows for long continuous runs, minimizing joints and potential leak points.

Available Lengths

Available in coils of 100, 200, 300 meters, and up to 1500 meters for sizes 16 mm to 32 mm. For sizes 40 mm to 160 mm, coils are supplied in 100-meter lengths.
