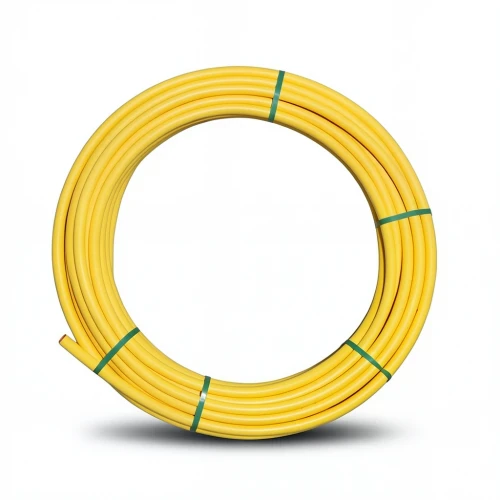

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 25 mm Thickness 2.3 mm Color Yellow | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for reliable gas distribution networks across the United Arab Emirates. Manufactured to ISO 4437 standards, these pipes deliver exceptional performance in demanding conditions, from the coastal humidity of Dubai to the high temperatures of Abu Dhabi's industrial zones.

Constructed from high-density polyethylene (PE 80), these pipes offer outstanding strength, durability, and resistance to corrosion and chemical degradation. They are designed to withstand high operating pressures and temperatures, ensuring long-term service life with minimal maintenance.

Key Features

• Material: High-density polyethylene (PE 80)
• Nominal pressure: 4.8 bar (SDR 17.6)
• Outside diameter: 25 mm; wall thickness: 2.3 mm
• Color: Yellow (standard for gas applications)
• Weight: 0.17 kg/m; MRS: 10 MPa; design stress: 5 MPa; safety factor: C=2
• Available in coils: 100m, 200m, 300m up to 1500m for sizes 16mm–32mm; 100m coils for sizes 40mm–160mm

Applications in the UAE

Ideal for gas supply networks in residential, commercial, and industrial projects across the Emirates. The yellow color ensures easy identification, while the coil format simplifies handling and installation in confined spaces, reducing labor costs and installation time.
