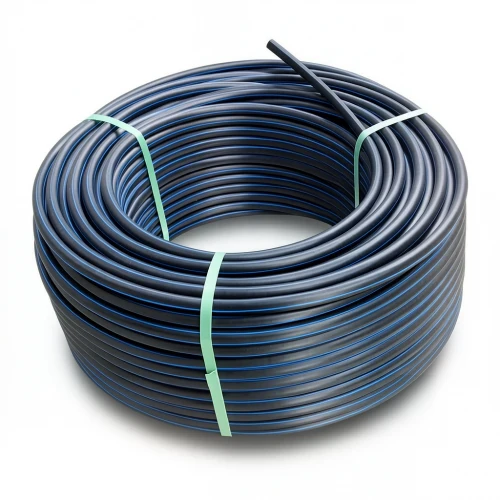

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 75 mm SDR 33 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable water transportation networks, meeting the stringent requirements of DIN 8074/8075. Crafted from high-density polyethylene (PE 100), it delivers exceptional durability and performance, making it a preferred choice for projects across the UAE—from Dubai’s infrastructure developments to Abu Dhabi’s utility expansions.

Designed to withstand high water pressure, this pipe ensures long-term service with a maintenance-free lifespan of 50 years. Its superior resistance to UV radiation and chemical corrosion (pH range 2–12) makes it ideal for the region’s harsh climate and demanding industrial environments. Additionally, the pipe’s flexibility and welded joint integrity provide excellent earthquake resistance, a key consideration for resilient infrastructure.

Key Features

• Outer diameter: 75 mm
• Standard dimension ratio (SDR): 33
• Pipe series (S): 16
• Material grade: PE 100
• Pressure rating: 4 bar
• Wall thickness: 2.3 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.557 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Ideal for potable water supply, irrigation, and industrial applications, this HDPE pipe combines quality and performance to meet the highest standards of UAE construction and utility projects.
