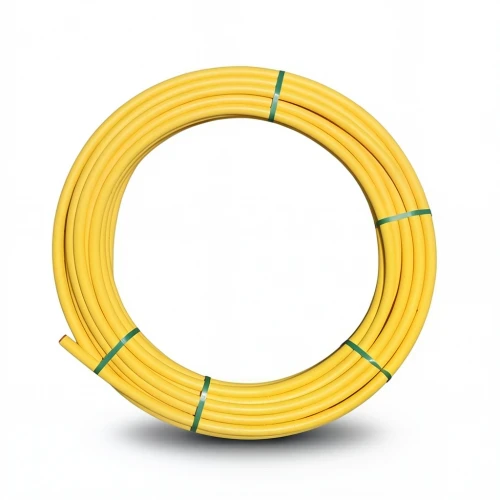

Almona HDPE Plastic Coil Pipe PN 8 Bar [PE 80] Outside Diameter 25 mm Thickness 3 mm Color Yellow

Almona HDPE coil pipes are the trusted choice for gas distribution projects across the UAE, from Dubai’s urban developments to Abu Dhabi’s industrial zones. Manufactured from high-density polyethylene (PE 80), these pipes deliver exceptional strength, durability, and resistance to pressure, chemical corrosion, and harsh sunlight – ideal for the region’s demanding climate.

With a pressure rating of 8 bar and an outside diameter of 25 mm, these coils are engineered for efficient and safe gas conveyance. The material’s high-temperature tolerance ensures reliable performance even in extreme conditions, while the yellow color provides clear identification for gas applications.

Key Features

• Material: High-density polyethylene (HDPE), grade PE 80
• Pressure rating: 8 bar (PN 8)
• Outside diameter: 25 mm; wall thickness: 3 mm
• Standard dimensional ratio: SDR 11
• Weight: 0.21 kg/m
• Minimum Required Strength (MRS): 10 MPa
• Design stress: 5 MPa; safety factor C=2
• Manufactured to ISO 4437
• Available in coil lengths: 100 m, 200 m, 300 m up to 1500 m (sizes 16-32 mm); 100 m coils for sizes 40-160 mm

Whether for residential gas lines or large-scale infrastructure, Almona HDPE coils offer a durable, cost-effective piping solution that meets international standards and supports the UAE’s commitment to quality construction.
