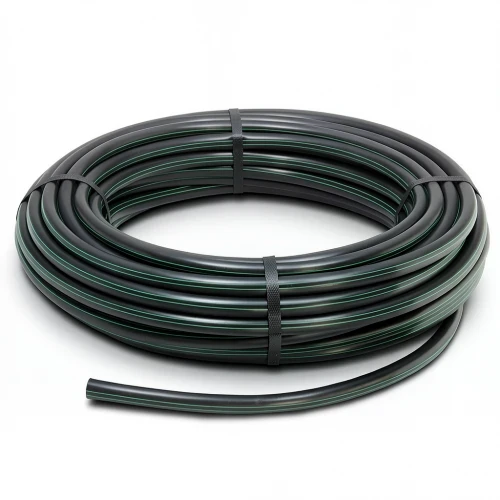

HDPE Polyethylene Coil Pipe Nominal Pressure 9.8 Bar [PE 63] OD 20 mm SDR 9 Color Black | Almona Factory

Al Mona Factory presents this HDPE (high-density polyethylene) coil pipe, engineered for reliable and efficient water conveyance in irrigation systems across the United Arab Emirates. With a nominal pressure of 9.8 bar and an SDR 9 rating, this pipe is built to withstand the demands of high-pressure water networks commonly found in agricultural and landscaping projects throughout Dubai, Abu Dhabi, and the Northern Emirates.

The pipe's PE 63 material grade ensures excellent durability, offering resistance to corrosion, rust, and ground pressures. Its black color provides UV protection, making it suitable for prolonged outdoor exposure under the intense UAE sun. Designed for a maintenance-free service life of up to 50 years, this pipe delivers long-term performance and peace of mind.

Key Features

• Outside diameter: 20 mm
• Wall thickness: 2.3 mm
• Weight: 0.133 kg/m
• Standard dimensional ratio (SDR): 9
• Nominal pressure: 9.8 bar
• Pipe series (S): 4
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm
• 100-meter coils available for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075 standards

This pipe is ideal for irrigation systems, water supply lines, and various industrial applications, ensuring smooth and durable operation in the UAE's demanding environment.
