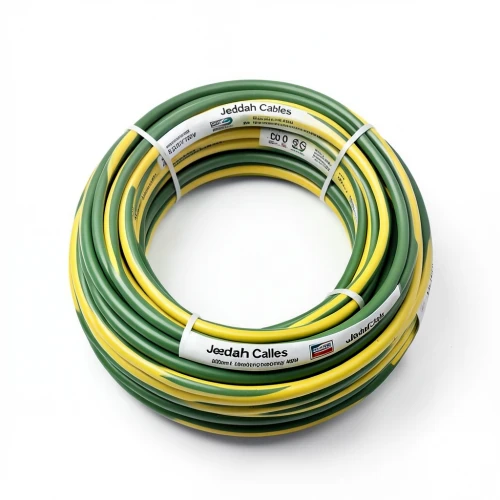

300mm2 Stranded Copper Earthing Wire 450/750V, Green/Yellow | Jeddah Cables
(36 Product Views)
Product description
This 300mm² stranded copper earthing wire from Jeddah Cables delivers reliable grounding performance for heavy-duty applications across the UAE. Its flexible copper conductor ensures easy handling and installation, even in confined spaces common in retrofit projects in Dubai and Abu Dhabi.
Superior Protection
The PVC insulation provides excellent resistance to moisture and environmental factors, crucial for the UAE's humid coastal climate and dusty inland conditions. It prevents electrical leakage, protects the copper core from corrosion, and enhances safety for both personnel and equipment.
Key Specifications
- Conductor: Flexible stranded copper
- Insulation: PVC rated at 85°C
- Voltage rating: 450/750V
- Cross-section: 300 mm²
- Insulation thickness: 2.4 mm
- Overall diameter: 25.4 mm
- Weight: 2900 kg/km
- Max DC resistance at 20°C: 0.0601 ohm/km
- Current rating (in conduits): 494 A
- Current rating (free air): 690 A
- Color: Green/Yellow
- Standard: IEC 60227
Applications in the UAE
Ideal for earthing systems in industrial plants, commercial towers, and infrastructure projects across the Emirates, this wire ensures a safe path for fault currents, protecting against electric shock and fire hazards. Its robust design meets the demands of the region's construction and energy sectors.
