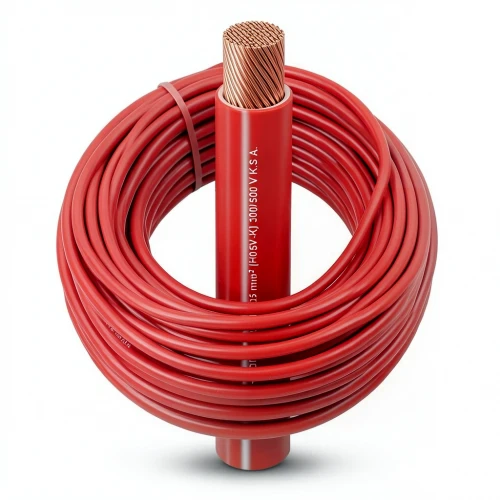

Copper Flexible Wire 0.75mm 300/500volts, PVC Insulation | Alfanar

This Alfanar flexible copper wire (CU/PVC) is engineered for reliable performance in the UAE's demanding electrical installations. With a 0.75 mm² cross-section and 300/500V rating, it meets the rigorous standards of BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3, ensuring safety and durability in both residential and commercial projects across Dubai, Abu Dhabi, and Sharjah.

The PVC insulation provides excellent resistance to moisture and water, crucial for the UAE's humid coastal climate. It forms a robust protective layer that prevents current leakage and shields the copper core from corrosion and mechanical damage, enhancing the wire's lifespan and ensuring safety for people and equipment.

Key Features

• Flexible copper conductor (24 wires, 0.2 mm diameter) for easy handling and installation
• PVC insulation rated at 70°C
• Voltage rating: 300/500V
• Low DC resistance (26 ohm/km at 20°C) for efficient power transmission
• Nominal insulation thickness: 0.6 mm; overall diameter: 2.3 mm
• Weight: 13 kg/km; supplied in 300-foot coils (100 yards), other lengths on request
• Available in red and other colors

Perfect for internal wiring in electric motors, transformers, control panels, and lighting systems, this wire is also suitable for electronic appliances used in measurement and regulation. Its flexibility and cost-effectiveness make it a preferred choice for electricians and contractors across the UAE.
