Product description

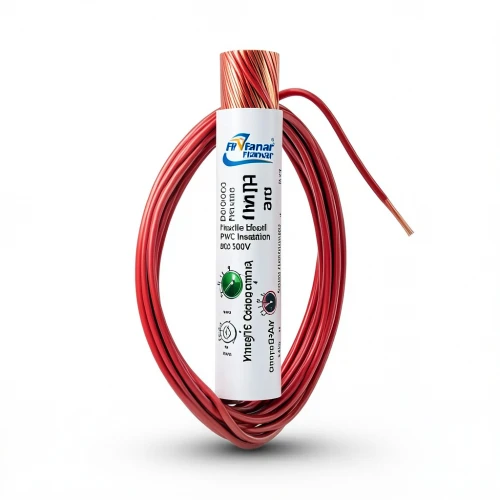

This flexible copper electrical wire from Alfanar is engineered for reliable performance in the demanding climate of the UAE. With a 1 mm² cross-section and 300/500V rating, it delivers consistent conductivity for a wide range of applications, from residential wiring to industrial equipment.
The PVC insulation provides excellent protection against moisture, corrosion, and electrical leakage, ensuring safety and durability even in high-humidity coastal areas like Dubai and Sharjah. Its flexibility simplifies installation in tight spaces, making it a preferred choice for electricians and contractors across the Emirates.
Key Features
- High-conductivity copper conductor (32 wires, 0.2 mm diameter)
- PVC insulation rated for 70°C
- Max DC resistance: 19.5 ohm/km at 20°C
- Nominal insulation thickness: 0.6 mm; overall diameter: 2.5 mm
- Weight: 16 kg/km; length: 300 feet (100 yards) per coil
- Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
Ideal for internal wiring in electric motors, transformers, lighting fixtures, and control panels, this wire meets the needs of projects across the UAE, from Abu Dhabi's commercial towers to industrial facilities in Jebel Ali.
