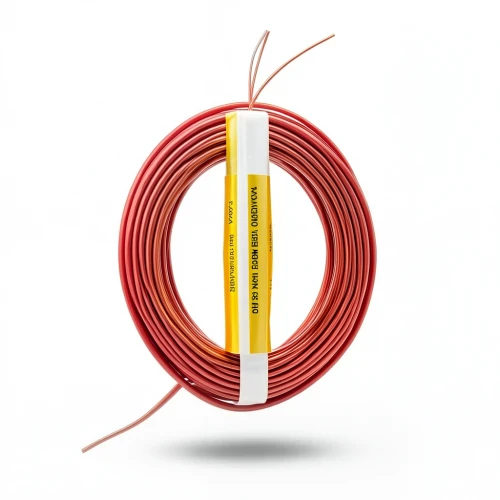

0.5mm Copper Flexible Electric Wire 300/500V, PVC Insulation 0.6mm Thick | Alfanar
(30 Product Views)
Flexible copper electrical wire with PVC insulation, rated 300/500V and 0.5 mm², ideal for internal wiring in motors, transformers, and lighting. Manufactured by Alfanar to international standards.
in stock
Product description
This flexible copper wire from Alfanar is engineered for reliable performance in the UAE's demanding electrical environments. The high-purity copper conductor ensures excellent conductivity, while the PVC insulation provides robust protection against moisture and mechanical wear, making it suitable for both residential and commercial installations across Dubai, Abu Dhabi, and the wider Emirates.
Key Features
- Flexible copper conductor (class 5) for easy handling and installation in tight spaces
- PVC insulation rated for 70°C, resistant to water and corrosion
- Voltage rating: 300/500V, suitable for low-voltage applications
- Conductor size: 0.5 mm² with 16 strands of 0.2 mm diameter
- Nominal insulation thickness: 0.6 mm, overall diameter: 2.1 mm
- Weight: 10 kg/km, supplied in 300-foot coils (other lengths on request)
- Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
Applications in the UAE
Ideal for internal wiring in electric motors, transformers, control panels, and lighting fixtures. Suitable for use in measurement, regulation, and control equipment, making it a versatile choice for electricians and contractors working on projects in the UAE's thriving construction and industrial sectors.
