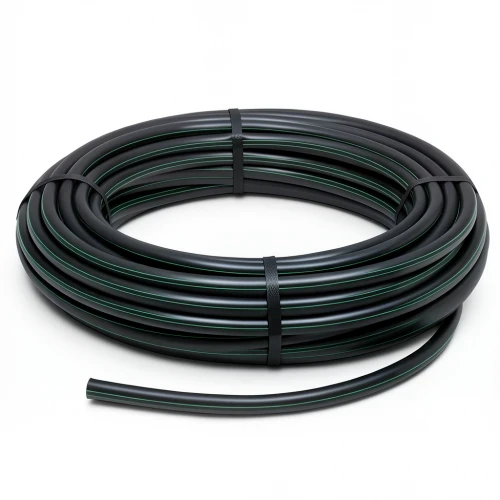

HDPE Polyethylene Coil Pipe Nominal Pressure 4 Bar [PE 63] OD 110 mm SDR 26 Color Black | Almona Company

Al Mona Company presents this HDPE (high-density polyethylene) coil pipe, engineered for efficient and reliable liquid conveyance in Qatar's demanding climate. With a PE 63 material grade and a nominal pressure rating of 4 bar, this pipe is a robust choice for irrigation networks and water supply systems that require long-term performance without frequent maintenance.

Manufactured to DIN 8074/8075 standards, this pipe offers an outside diameter of 110 mm, a wall thickness of 4.2 mm, and a standard dimensional ratio (SDR) of 26. Its material weight of 1.43 kg/m ensures ease of handling during installation. The pipe's design stress of 5.04 MPa and a safety factor of C=1.25 underscore its durability, while its minimum required strength (MRS) of 6.3 MPa guarantees resistance to pressure fluctuations.

Available in coil lengths of 100, 200, and up to 1500 meters for smaller diameters (16–32 mm), and in 100-meter coils for sizes 40–160 mm, this HDPE pipe adapts to a variety of project scales—from residential landscaping in Al Rayyan to large agricultural schemes in Al Wakrah. Its black color provides UV protection, making it suitable for above-ground installations under the Qatari sun.

Key Features

• High-density polyethylene (PE 63) construction for strength and flexibility
• Nominal pressure: 4 bar
• Outside diameter: 110 mm; wall thickness: 4.2 mm
• SDR 26 and pipe series (S) 12.5
• Design stress: 5.04 MPa; safety factor C=1.25
• Minimum required strength (MRS): 6.3 MPa
• Black color for UV resistance
• Manufactured according to DIN 8074/8075
• Available in coil lengths from 100 to 1500 meters (depending on size)

Ideal for irrigation systems, water distribution, and industrial applications across Qatar, this HDPE coil pipe offers a maintenance-free service life of up to 50 years, making it a cost-effective and sustainable solution for both temporary and permanent installations.
