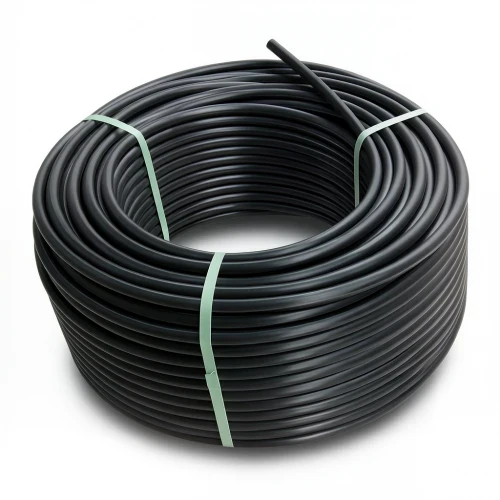

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 32 mm SDR 9 Color Black | Almona Factory

Almona Factory presents its premium HDPE (High-Density Polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks in Qatar. Manufactured in accordance with DIN 8074/8075, these pipes combine exceptional strength with long-term reliability, making them an ideal choice for both potable water supply and irrigation systems across Doha, Al Rayyan, and Al Wakrah.

Thanks to the PE 100 material grade and a pressure rating of 15.6 bar, these pipes handle high-pressure applications with ease. Their superior flexibility and welded joint integrity provide excellent resistance to seismic activity, a crucial consideration for infrastructure in the region. Moreover, the pipes are highly resistant to chemical corrosion, withstanding a pH range from 2 to 12, and they offer outstanding protection against UV radiation, ensuring performance even under the intense Qatari sun.

With a standard dimension ratio of SDR 9 and a wall thickness of 3.6 mm, these pipes deliver consistent, dependable flow. Available in convenient coil lengths ranging from 100 to 1500 meters (for sizes 16 mm to 32 mm) and 100-meter coils for sizes 40 mm to 160 mm, they simplify installation and reduce the need for joints, saving time and labor on project sites.

Key Features

• Material: PE 100 (High-Density Polyethylene)
• Pressure rating: 15.6 bar
• Outside diameter: 32 mm
• SDR 9 (Standard Dimension Ratio)
• Wall thickness: 3.6 mm
• Minimum Required Strength (MRS): 10 MPa
• Design safety factor: C=1.6, σs = 6.25 MPa
• Weight: 0.331 kg/m
• Color: Black
• UV resistant for long-term outdoor exposure
• Chemical resistant (pH 2–12)
• Flexible and earthquake-resistant
• 50-year maintenance-free service life
• Manufactured per DIN 8074/8075

Whether you are developing new residential communities, upgrading municipal water lines, or setting up agricultural irrigation in Qatar, these HDPE coil pipes offer a cost-effective and durable solution. Their long coil lengths minimize connections, reducing potential leak points and expediting installation.
