HDPE Polyethylene Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 63 mm SDR 9 Color Black | Almona Company

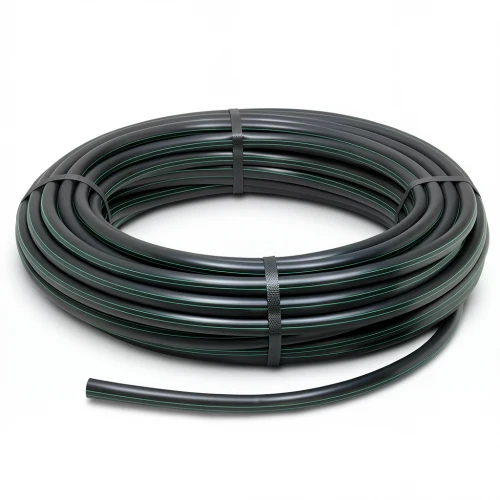

This HDPE coil pipe from Al Mona Company is engineered for high-performance liquid conveyance, making it a dependable choice for irrigation systems and water distribution networks across Qatar. Its high-density polyethylene (PE 80) construction delivers exceptional strength and longevity, even under demanding conditions.

With a nominal pressure rating of 16 bar and an SDR 9 standard dimension ratio, this pipe is built to handle high-pressure applications with ease. It offers a maintenance-free service life of up to 50 years, reducing operational costs and downtime. The black color provides superior resistance to UV radiation and environmental stress, ensuring reliable performance in Qatar's harsh climate.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 7.1 mm
• Weight: 1.26 kg/m
• Standard dimension ratio (SDR): 9
• Nominal pressure: 16 bar
• Pipe series (S): 4
• Material grade: PE 80
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075
• Available in coil lengths: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Whether you are upgrading agricultural irrigation in Al Rayyan or installing municipal water lines in Doha, this HDPE pipe offers a cost-effective and durable solution. Its flexibility simplifies installation, while its resistance to corrosion and abrasion ensures long-term reliability.
