HDPE Plastic Coil Pipe PN 19.2 Bar [PE 100] OD 125 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

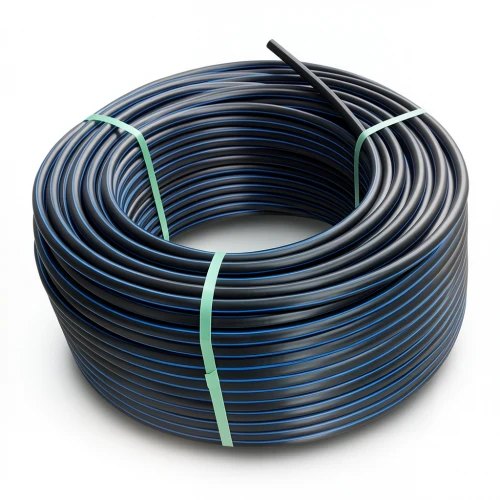

These HDPE coil pipes from Al Mona Factory are manufactured to DIN 8074/8075 standards, offering a robust solution for water transportation networks across Qatar. Made from high-density polyethylene (PE 100), they deliver exceptional durability and performance, even under the demanding conditions of the region's climate and infrastructure projects.

With a pressure rating of 19.2 bar and an outside diameter of 125 mm, these pipes are ideal for high-pressure water supply systems, irrigation projects, and drainage applications. Their flexibility and resistance to external factors—including UV exposure and seismic activity—make them a dependable choice for long-term installations in cities like Doha, Al Rayyan, and Al Wakrah.

Key Features

• Material grade: PE 100, ensuring high strength and longevity
• Pressure rating: 19.2 bar (PN 19.2)
• Outside diameter: 125 mm, with wall thickness of 17.1 mm
• Standard dimension ratio: SDR 7.4, pipe series (S): 3.2
• Minimum required strength (MRS): 10 MPa, design safety factor: C=1.6
• Chemical resistance: withstands pH range 2 to 12
• UV resistant and earthquake-resistant due to high flexibility
• 50 years maintenance-free service life
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)

These pipes are suitable for potable water conveyance, irrigation systems, and industrial applications, providing a reliable and cost-effective solution for Qatar's growing infrastructure.
