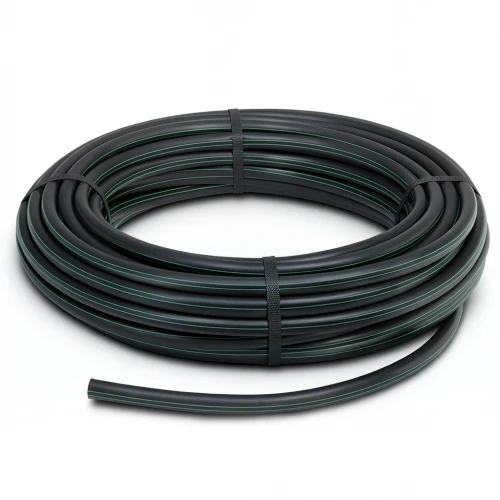

HDPE Plastic Coil Pipe PN 15.9 Bar [PE 63] Outside Diameter 32 mm SDR 7.4 Color Black | Almona Factory

This HDPE coil pipe, produced by Almona Factory, is engineered for reliable water conveyance in demanding environments. Made from high-density polyethylene (PE 63), it combines strength with flexibility, making it an ideal choice for irrigation networks across Qatar, from Doha's municipal projects to farmlands in Al Wakrah and Al Rayyan.

The pipe is rated for a working pressure of 15.9 bar, with an outside diameter of 32 mm and a wall thickness of 4.4 mm. Its SDR 7.4 rating ensures robust performance under high-pressure conditions, while the material's inherent corrosion resistance and durability offer a maintenance-free service life of up to 50 years.

Key Features

• High-density polyethylene (HDPE) construction for superior strength and flexibility
• Rated pressure: 15.9 bar (PN 15.9)
• Outside diameter: 32 mm; wall thickness: 4.4 mm
• Standard Dimension Ratio (SDR): 7.4
• Material grade: PE 63, with Minimum Required Strength (MRS) of 6.3 MPa
• Design stress: 5.04 MPa; safety factor C=1.25
• Available in coil lengths: 100m, 200m, 300m, up to 1500m (for sizes 16mm–32mm)
• Manufactured to DIN 8074/8075 standards
• Lightweight design simplifies transport and installation, especially in remote sites

Whether for agricultural irrigation, landscaping, or water supply lines, this HDPE coil pipe is a cost-effective and dependable solution tailored to the Qatari climate and project needs.
