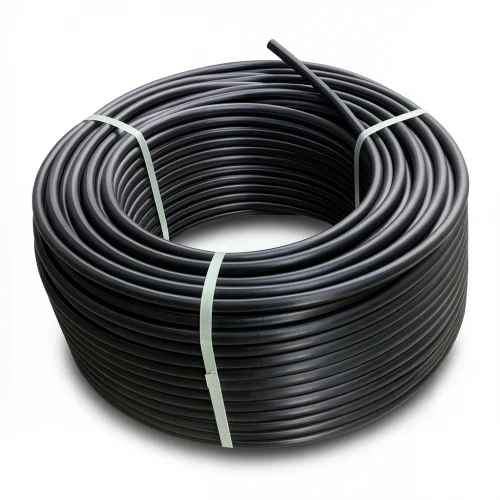

HDPE Polyethylene Plastic Coil Pipe Working Pressure 6 Bar [PE 100] Outer Diameter 160 mm SDR 26 Color Black | Almona Company
(7 Product Views)
Product description
Al-Mona Company presents its premium HDPE coil pipes, engineered for reliable water transportation networks across Qatar. Manufactured from high-density polyethylene (PE100), these pipes deliver exceptional strength, durability, and resistance to corrosion, ensuring long-lasting performance in demanding environments.
Designed to withstand high temperatures and pressures, these coils are lightweight yet robust, simplifying handling, transportation, and installationโespecially valuable for projects in Doha, Al Rayyan, and Al Wakrah. The black color provides UV resistance, making them suitable for outdoor applications under the Qatari sun.
Key Specifications
- Outer diameter: 160 mm
- Wall thickness: 6.2 mm
- Standard dimension ratio: SDR 26
- Working pressure: 6 bar
- Pipe series (S): 12.5
- Material grade: PE100
- Color: Black
- Minimum required strength (MRS): 10 MPa
- Design stress (ฯs): 8 MPa
- Design safety factor: C=1.25
- Available in coils: 100, 200, 300 meters (up to 1500 m for sizes 16โ32 mm); 100 m coils for sizes 40โ160 mm
- Manufactured to ISO 4427-2
These pipes are an excellent choice for potable water supply, irrigation, and industrial applications, meeting the highest quality standards required in Qatar's infrastructure projects.
