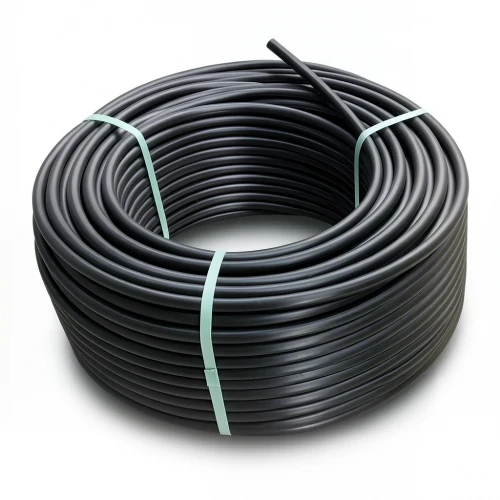

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 140 mm SDR 9 Color Black | Almona Factory

This HDPE (high-density polyethylene) coil pipe from Almona Factory is engineered for demanding water transportation networks, meeting the rigorous standards of DIN 8074/8075. With a PE 100 material grade and a pressure rating of 15.6 bar, it delivers exceptional strength and durability, making it a dependable choice for infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

The pipe's superior properties include resistance to high temperatures, high pressure, and chemical corrosion, ensuring long-term performance even in harsh conditions. Its flexibility and welded joint integrity provide excellent earthquake resistance, while its UV resistance allows for extended outdoor exposure — a key advantage under Qatar's intense sun.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Material grade: PE 100
• Pressure rating: 15.6 bar
• Wall thickness: 15.7 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 6.18 kg/m
• Design safety factor: C = 1.6, σs = 6.25 MPa
• Color: Black
• Length: Coils from 100 m to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

With a 50-year maintenance-free lifespan and resistance to a wide pH range (2 to 12), this HDPE pipe is ideal for potable water supply, irrigation, and industrial applications across Qatar. Available in various sizes to meet project-specific needs, it offers a cost-effective and reliable solution for modern construction and utility networks.
