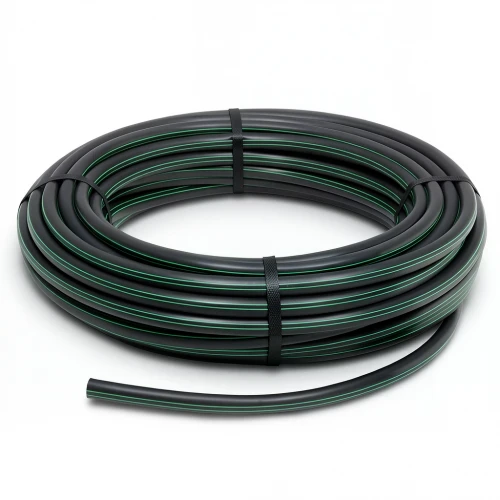

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] Outside Diameter 20 mm SDR 11 Color Black with Green Stripes | Almona Factory

These HDPE coil pipes, manufactured by Al Mona factory in accordance with DIN 8074/8075, are the ideal solution for water transportation networks across Qatar. Made from high-density polyethylene (PE 80), they offer exceptional durability and performance, ensuring reliable water supply in residential, commercial, and industrial projects.

Designed to withstand high water pressure, these pipes are perfect for demanding applications, providing a maintenance-free service life of up to 50 years. Their resistance to UV radiation and chemical corrosion (pH range 2–12) makes them suitable for Qatar's harsh climate and diverse water conditions. The flexibility of the pipe and its welded joints also provides excellent resistance to seismic activity, a key consideration for infrastructure in the region.

Key Features

• Outside diameter: 20 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 80
• Pressure rating: 12.5 bar
• Wall thickness: 1.9 mm
• Minimum required strength (MRS): 8 MPa
• Material weight: 0.112 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils of 100, 200, 300 meters up to 1500 meters (sizes 16 mm to 32 mm)
• 100-meter coils available for sizes 40 mm to 160 mm

These pipes are widely used in water supply networks, irrigation systems, and industrial fluid transport across Doha, Al Rayyan, and Al Wakrah. Their long service life and low maintenance requirements make them a cost-effective choice for both new installations and upgrades.
