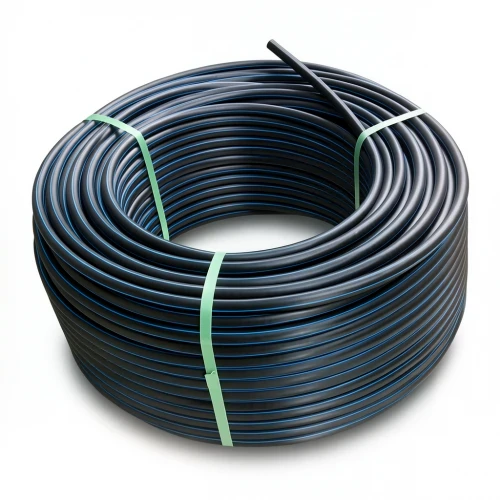

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 63 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

This HDPE (high-density polyethylene) coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is engineered for reliable water transportation in demanding environments. With a pressure rating of 12.5 bar and a PE 100 material grade, it delivers exceptional strength and durability, making it a preferred choice for water supply networks across Qatar.

Key Features

• Outer diameter: 63 mm
• Standard Dimension Ratio (SDR): 13.6
• Pipe Series (S): 6.3
• Material grade: PE 100
• Pressure rating: 12.5 bar
• Wall thickness: 4.7 mm
• Minimum Required Strength (MRS): 8 MPa
• Material weight: 0.883 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Available in coils: 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm

Applications in Qatar

Ideal for potable water supply and distribution networks, this pipe is well-suited to Qatar's infrastructure projects, including residential, commercial, and industrial developments in Doha, Al Rayyan, and Al Wakrah. Its resistance to high pressure and chemical corrosion ensures reliable performance in harsh conditions, while its flexibility allows for easy installation in challenging terrains.

Long-Term Performance

With a maintenance-free lifespan of up to 50 years, this HDPE pipe offers superior resistance to UV radiation and seismic activity, thanks to its flexible joints. It also withstands chemicals within a pH range of 2 to 12, making it versatile for various applications.
