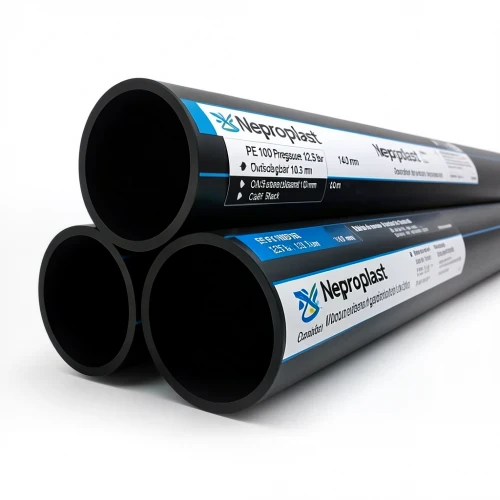

Neproplast HDPE Pipes PE 100 Pressure 12.5 Bar Outside Diameter 140 mm Thickness 10.3 mm Color Black

Neproplast HDPE pipes are engineered for demanding water supply systems, offering a robust solution for both potable and agricultural water conveyance across Qatar. Manufactured from high-density polyethylene (PE100), these pipes deliver exceptional strength, durability, and long-term performance, even under the harsh climatic conditions prevalent in the region.

With a pressure rating of 12.5 bar and a standard dimension ratio (SDR) of 13.6, these pipes ensure reliable flow and pressure integrity. The 140 mm outer diameter and 10.3 mm wall thickness provide a balanced design for efficient hydraulic performance. Each pipe is supplied in straight 12-meter lengths, with custom lengths available upon request.

Key features include resistance to bacteria, insects, and ultraviolet radiation, as well as immunity to corrosion and chemical attack. The lightweight nature of HDPE simplifies handling and installation, while the material's flexibility allows for easy shaping to meet project-specific requirements. Joints are securely connected using electric welding, creating a leak-proof and durable system.

These pipes are an excellent choice for infrastructure projects in Doha, Al Rayyan, and other growing municipalities, where reliable water distribution is critical. They are also suitable for agricultural irrigation networks, offering a cost-effective and maintenance-free solution.

Key Specifications

• Material: High-Density Polyethylene (PE100)
• Pressure Rating: 12.5 Bar
• Outside Diameter: 140 mm
• Wall Thickness: 10.3 mm
• Standard Dimension Ratio (SDR): 13.6
• Minimum Required Strength (MRS): 10 MPa
• Series (S): 6.3
• Color: Black (other colors available on request)
• Weight: 4.220 kg per meter
• Length: 12 meters straight (custom lengths available)
