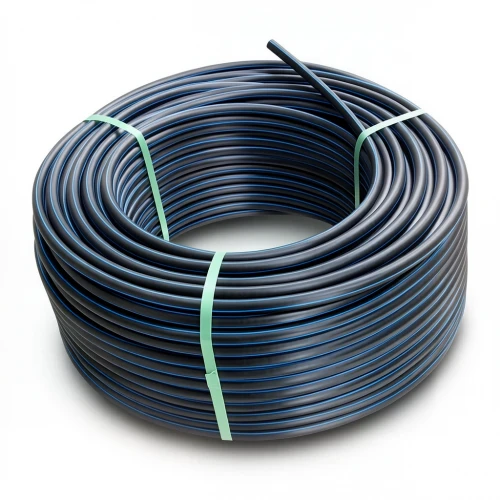

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 110 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is a reliable solution for water transportation networks across Qatar. Its high-density polyethylene (PE 100) construction delivers exceptional durability and performance, making it suitable for both potable water supply and industrial applications.

Designed to handle high pressures, this pipe is ideal for water networks in Doha, Al Rayyan, and Al Wakrah, where consistent pressure is critical. With a minimum required strength (MRS) of 8 MPa and a design safety factor of C=1.25, it ensures safe operation under demanding conditions. The pipe offers a maintenance-free service life of 50 years, reducing long-term operational costs.

Its flexibility allows for easy installation and excellent resistance to earthquakes, a key consideration for infrastructure in seismic zones. Additionally, the pipe provides superior UV resistance, ensuring performance even under Qatar's intense sun exposure. It also withstands chemical corrosion across a pH range of 2 to 12, making it versatile for various industrial fluids.

Key Features

• Outside diameter: 110 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE 100
• Pressure rating: 12.5 bar
• Wall thickness: 8.1 mm
• Minimum required strength: 8 MPa
• Weight: 2.64 kg/m
• Color: Black with blue stripes
• Available in coils of 100 meters (for sizes 40-160 mm) and longer coils up to 1500 meters (for sizes 16-32 mm)

Whether for municipal water supply, irrigation, or industrial projects, this HDPE pipe offers a dependable and long-lasting solution tailored to Qatar's needs.
