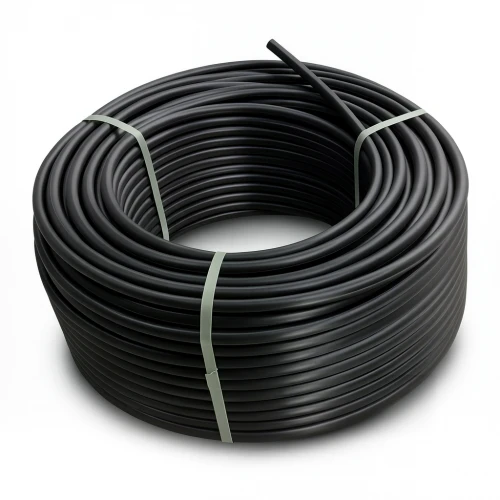

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 160 mm SDR 13.6 Color Black | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a robust solution for water transportation networks across Qatar. Engineered to meet ISO 4427-2 standards, this pipe offers exceptional strength, durability, and resistance to corrosion, making it ideal for the harsh desert climate and demanding construction projects in Doha, Al Rayyan, and Al Wakrah.

With a pressure rating of 10 bar and a 160 mm outer diameter, this PE80 pipe delivers reliable performance for both potable water and industrial applications. Its high flexibility allows for easy installation, reducing the need for fittings and joints, while its lightweight nature simplifies handling and transport.

Key Features

• Material grade: PE 80
• Pressure rating: 10 bar (PN 10)
• Outer diameter: 160 mm
• Standard dimension ratio: SDR 13.6
• Wall thickness: 11.8 mm
• Minimum required strength (MRS): 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C = 1.25
• Color: Black
• Length: Available in coils of 100 meters (for sizes 40 mm to 160 mm)

Whether for municipal water supply, irrigation, or industrial piping, this HDPE coil pipe ensures long-term reliability and cost-effective performance. Choose Almona Factory for your next project in Qatar.
