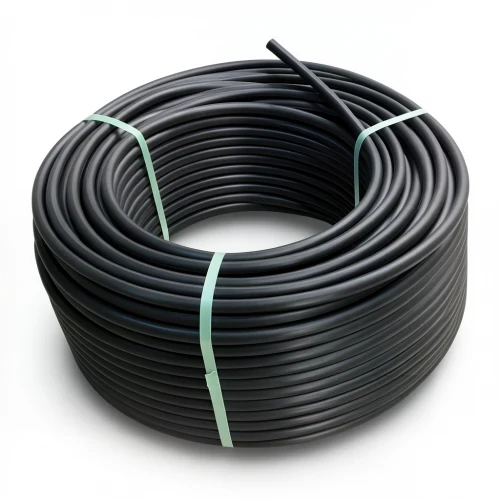

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 32 mm SDR 13.6 Color Black | Almona Factory

Almona Factory presents high-density polyethylene (HDPE) coil pipes, a superior solution for water transportation networks across Qatar. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and performance, making them a preferred choice for projects in Doha, Al Rayyan, and Al Wakrah.

Engineered to withstand high water pressures, these pipes are ideal for municipal water supply lines and irrigation systems that demand reliability. With a design life of 50 years requiring minimal maintenance, they offer long-term value for infrastructure developments. Their resistance to UV radiation ensures they perform reliably under Qatar's intense sun, while their flexibility provides excellent seismic resilience, a critical consideration for the region.

These pipes also resist chemical corrosion, handling a wide pH range from 2 to 12, which makes them suitable for various industrial and agricultural applications. Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm, they offer flexibility in installation and reduce the need for joints.

Key Specifications

• Outside diameter: 32 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 100
• Nominal pressure: 9.9 bar
• Wall thickness: 2.4 mm
• Minimum required strength (MRS): 10 MPa
• Material weight: 0.235 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black
