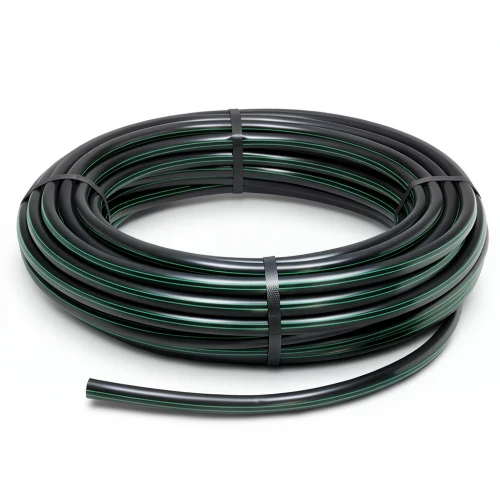

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 90 mm SDR 9 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in Qatar's demanding environment. Made from high-density polyethylene (PE 80), it delivers outstanding durability and long-term performance, with a service life of 50 years requiring minimal maintenance.

Designed to handle high pressures, this pipe is perfect for water networks that operate under significant stress. Its flexibility and resistance to earthquakes and ground movement make it a dependable choice for Qatar's infrastructure projects, from Doha to Al Wakrah. The pipe also offers superior protection against UV exposure and chemical corrosion, withstanding a wide pH range from 2 to 12.

Key Specifications

• Outside Diameter: 90 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 80
• Pressure Rating: 16 bar
• Wall Thickness: 12.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 3.78 kg/m
• Design Safety Factor: C = 1.25
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm), and 100-meter coils for sizes 40 mm to 160 mm

Compliant with DIN 8074/8075, this pipe is suitable for a variety of applications in Qatar, including potable water supply, irrigation, and industrial fluid transport. Its robust construction ensures safe and efficient delivery of water across the country, even under extreme heat and soil conditions.
