HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] OD 110 mm SDR 17.6 Color Black | Almona Factory

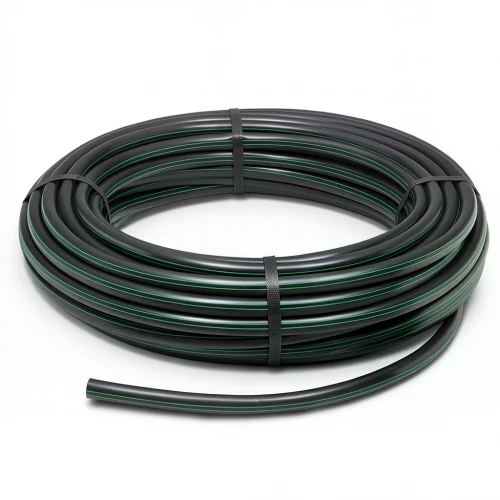

This HDPE coil pipe, manufactured by Al-Mona Factory, is a reliable solution for water conveyance in Qatar's demanding climate. Made from high-density polyethylene (PE 63), it offers exceptional durability and performance, ensuring efficient liquid transport with minimal maintenance.

Engineered to withstand high water pressure, this pipe is ideal for pressurized water networks common in Doha, Al Rayyan, and Al Wakrah. Its robust construction provides superior resistance to external factors, including soil conditions and UV exposure, making it a long-lasting choice for both above-ground and buried installations.

Key Features:

• Outer diameter: 110 mm
• Wall thickness: 6.3 mm
• Material weight: 2.08 kg/m
• Standard dimension ratio (SDR): 17.6
• Nominal pressure: 6 bar
• Pipe series (S): 8.3
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Available in coils of 100 meters (for sizes 40 mm to 160 mm); other lengths available on request
• Manufactured according to DIN 8074/8075

With a service life of up to 50 years without maintenance, this pipe reduces operational costs and downtime, making it a smart investment for agricultural, municipal, and industrial projects across Qatar.
