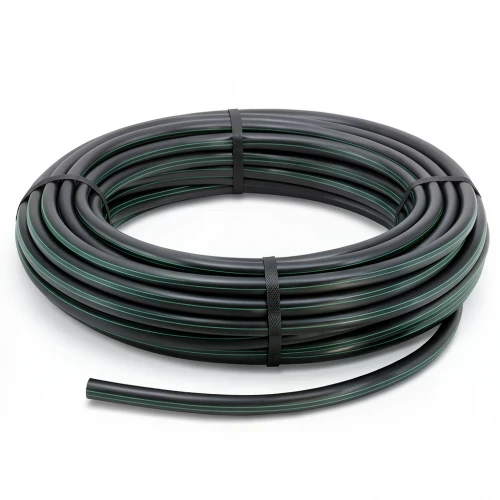

HDPE Coil Pipe Nominal Pressure 12.5 Bar [PE 80] Outside Diameter 110 mm SDR 11 Color Black | Almona Company

Al Mona Company presents this HDPE coil pipe, engineered for efficient and reliable liquid transportation in demanding conditions. Manufactured from high-density polyethylene (PE 80), this pipe offers exceptional durability and performance, making it a top choice for irrigation systems and water networks throughout Qatar.

With a nominal pressure of 12.5 bar and an SDR 11 rating, it withstands high water pressures, ensuring a secure and long-lasting infrastructure. The pipe's resistance to chemicals and ultraviolet rays makes it perfect for outdoor installations, enduring the harsh Qatari climate without degradation. Enjoy a maintenance-free service life of up to 50 years.

Key Features

• Outside diameter: 110 mm
• Wall thickness: 12.3 mm
• Material weight: 3.78 kg/m
• Standard dimension ratio (SDR): 11
• Nominal pressure: 12.5 bar
• Pipe series (S): 5
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor (C): 1.25
• Length: Coils of 100, 200, 300 meters (up to 1500 m) for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Ideal for agricultural, landscaping, and municipal water projects across Qatar, including Doha, Al Rayyan, and Al Wakrah, this pipe delivers consistent performance and easy installation, even in tight spaces.
