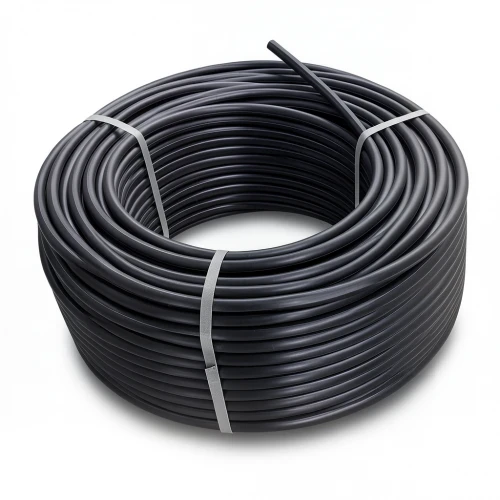

HDPE Plastic Coil Pipe Nominal Pressure 19.2 Bar [PE 100] OD 20 mm SDR 7.4 Color Black | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al Mona Factory, a premium solution for water transportation networks across Qatar. Manufactured to DIN 8074/8075 standards, this pipe combines high-density polyethylene (PE 100) with a robust design to deliver exceptional performance and longevity.

Key Features

• Nominal pressure of 19.2 bar, suitable for high-pressure water systems
• Outside diameter of 20 mm and wall thickness of 3 mm
• Standard Dimension Ratio (SDR) of 7.4 and pipe series (S) of 3.2
• Material grade PE 100 with Minimum Required Strength (MRS) of 10 MPa
• Design safety factor of C=1.6 and design stress (σs) of 6.25 MPa
• Black color for UV resistance and durability
• Available in coils of 100 to 1500 meters (for sizes 16–32 mm) and 100-meter coils (for sizes 40–160 mm)
• Weight of 0.164 kg per meter

Applications in Qatar

Engineered for the demanding climate of Qatar, these pipes are ideal for potable water distribution, irrigation systems, and industrial fluid transport. Their resistance to high pressure and chemical corrosion (pH 2–12) makes them a reliable choice for both residential and commercial projects in Doha, Al Rayyan, and Al Wakrah. With a maintenance-free lifespan of 50 years, they offer a cost-effective and sustainable solution for Qatar's infrastructure.

HDPE pipes are also highly flexible, providing excellent resistance to seismic activity and ground movement, which is crucial for the region's soil conditions. Their ease of installation without sophisticated equipment reduces labor time and costs, making them a preferred choice for contractors and engineers.
