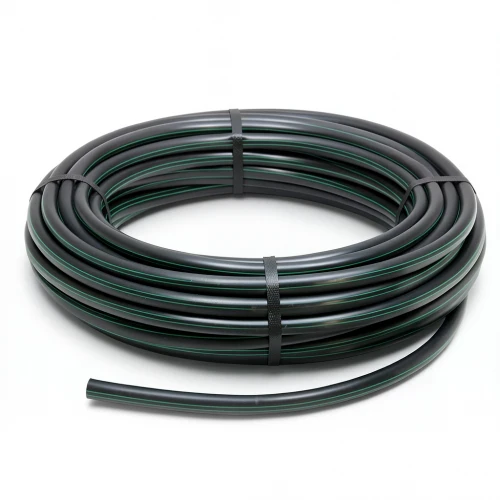

HDPE Plastic Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 63 mm SDR 6 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory to DIN 8074/8075, is engineered for demanding water transportation networks. Made from high-density polyethylene (PE 63), it delivers exceptional strength and reliability for both potable water and industrial applications.

Key Features

• Outside diameter: 63 mm
• Standard Dimension Ratio (SDR): 6
• Pipe Series (S): 2.5
• Material grade: PE 63
• Nominal pressure: 15.7 bar
• Wall thickness: 5.8 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Material weight: 1.05 kg/m
• Design safety factor: C = 1.6
• Design stress (σs): 3.94 MPa
• Color: Black with green stripes
• Length: Coils of 100 m, 200 m, 300 m up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Performance and Durability

These pipes are built to withstand high water pressure, making them perfect for networks that experience significant stress. With a maintenance-free lifespan of 50 years, they offer a long-term solution for infrastructure projects across Qatar, from Doha to Al Wakrah. The material’s flexibility ensures excellent resistance to earthquakes and ground movement, while its UV resistance protects against prolonged sun exposure—a critical advantage in Qatar’s harsh climate. Additionally, the pipes resist chemical corrosion across a pH range of 2 to 12, ensuring safe transport of various fluids.

Applications in Qatar

Ideal for municipal water supply lines, irrigation systems, and industrial piping, these HDPE coils are suitable for both underground and above-ground installations. Their durability and ease of handling make them a preferred choice for contractors and developers working on residential, commercial, and infrastructure projects throughout Qatar.
