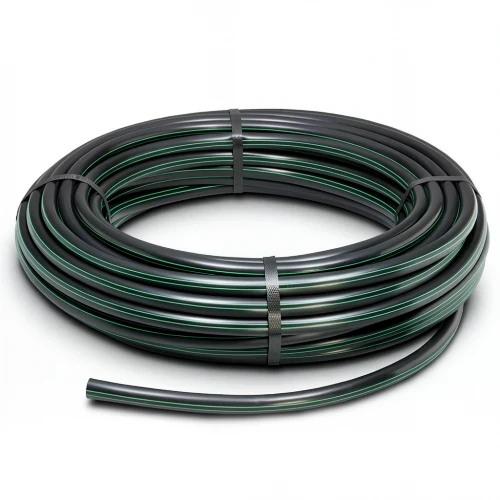

HDPE Plastic Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 125 mm SDR 6 Color Black with Green Stripes | Almona Factory

Engineered for demanding water transportation systems, this HDPE coil pipe from Al Mona Factory meets the rigorous standards of DIN 8074/8075. Its high-density polyethylene construction delivers exceptional durability, making it a preferred choice for infrastructure projects across Qatar, from Doha's urban networks to Al Rayyan and Al Wakrah's growing developments.

This pipe is built to withstand high water pressure, ensuring reliable performance in municipal and industrial applications. With a design life of 50 years requiring minimal maintenance, it offers a cost-effective solution for long-term projects. The pipe's flexibility provides superior resistance to seismic activity, a crucial feature in a region that values resilient infrastructure.

Its UV resistance ensures longevity even under Qatar's intense sun, while chemical resistance (pH 2–12) makes it suitable for a wide range of fluids. Available in coil lengths up to 1500 meters for smaller diameters and 100-meter coils for sizes up to 160 mm, this pipe simplifies installation and reduces the need for joints.

Key Specifications

• Outside diameter: 125 mm
• Standard dimension ratio (SDR): 6
• Pipe series (S): 2.5
• Material grade: PE 63
• Nominal pressure: 15.7 bar
• Wall thickness: 20.8 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 6.75 kg/m
• Design safety factor: C=1.6, σs=3.94 MPa
• Color: Black with green stripes
• Length: Coils (100m, 200m, 300m up to 1500m) for sizes 16–32 mm; 100m coils for sizes 40–160 mm
